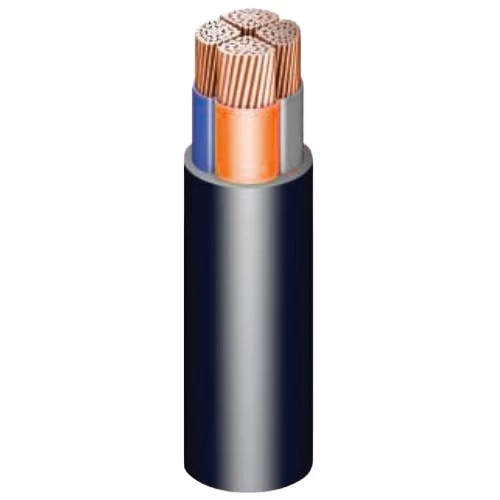

400 sq mm 4 Core Copper Cable Stranded 600/1000V, XLPE Insulated, PVC Sheathed | Riyadh Cables

4 core stranded copper electrical cable (CU/XLPE/PVC), Produced by Riyadh Cables Company, Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. It is also jacketed with a high-quality PVC (polyvinyl chloride) outer sheath that provides additional protection against corrosion and mechanical damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Sheath: PVC
• Voltage: 600/1000 volts
• Conductor type: Sectoral Stranded (sm)
• Number of Cores: 4 Core
• Conductor Size (Cross-Sectional Area): 400 mm2
• Number of wires: 53
• Nominal Insulation Thickness: 2 mm
• Nominal Sheath Thickness: 3.3 mm
• Approx Overall Diameter: 73 mm
• Weight: 16075 kg/km
• Cable Length: 250 meters
• Phase Core Color: (Blue, Brown, Black, Gray)
• Conformity According to International Standard: IEC 60502-1
