XLPE Insulated Stranded Copper Alfanar Cable, 70mm 3 Core, 600/1000V
(1046 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

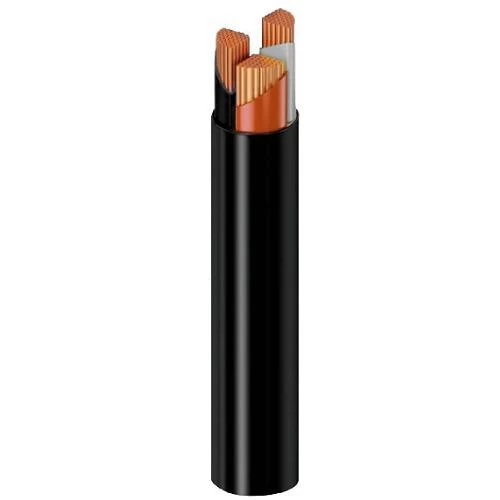

Three core stranded copper cable (CU/XLPE/PVC), phase core colors (brown, black, grey), conductor size 70 mm2, low voltage 600/1000V, produced by Alfanar Company, which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties.
Product description
Three core stranded copper cable (CU/XLPE/PVC), Produced by Alfanar Company, Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Jacket: PVC (Polyvinyl Chloride)
- Voltage: 600/1000 volts
- Conductor Size (Cross-Sectional Area): 70 mm2
- Conductor Shape: Sector Shaped (sm)
- Number of Cores: 3
- Max DC Conductor Resistance at 20°C: 0.2680 ohm/km
- Max AC Conductor Resistance at 90°C: 0.3431 ohm/km
- Current Rating Laid in Ground: 209 Ampere
- Current Rating Laid in Ducts: 159 Ampere
- Current Rating Laid in Free Air: 220 Ampere
- Approx Overall Diameter: 26.5 mm
- Weight: 2210 kg/km
- Phase Core Colors: (Brown, Black, Grey)
- Standard: IEC 60502-1
