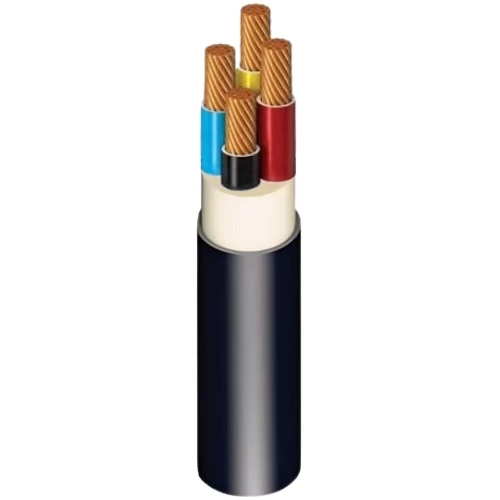

Stranded Copper Cable 3×25+16 mm 600/1000V, XLPE Insulated, PVC Sheathed | Riyadh Cables

Stranded copper electrical cable (CU/XLPE/PVC) 3 phase + neutral line, Produced by Riyadh Cables Company, Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. It is also jacketed with a high-quality PVC (polyvinyl chloride) outer sheath that provides additional protection against corrosion, heat and moisture damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Sheath: PVC
• Voltage: 600/1000 volts
• Phase Conductor Shape: Round Stranded (rm)
• Neutral Conductor Shape: Round Stranded (rm)
• Number of Cores: 3 Core + Neutral Line
• Conductor Size (Cross-Sectional Area): ( 3c × 25 mm2 ) + 16 mm2
• Number of Phase Wires: 7
• Number of Neutral Wires: 7
• Approx Diameter of Phase Conductor: 6.30 mm
• Approx Diameter of Neutral Conductor: 5.03 mm
• Nominal Insulation Thickness of Phase: 0.9 mm
• Nominal Insulation Thickness of Neutral: 0.7 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 25 mm
• Weight: 1325 kg/km
• Cable Length: 1000 meters
• Phase Core Colors: (Red, Yellow, Blue, Black)
• Standard: IEC 60502-1
