CU/XLPE/PVC Electrical Cable 120mm Size 0.6/1kV, 3 Core, Stranded Copper, 500 meter | Red Sea Cables
(798 Product Views)

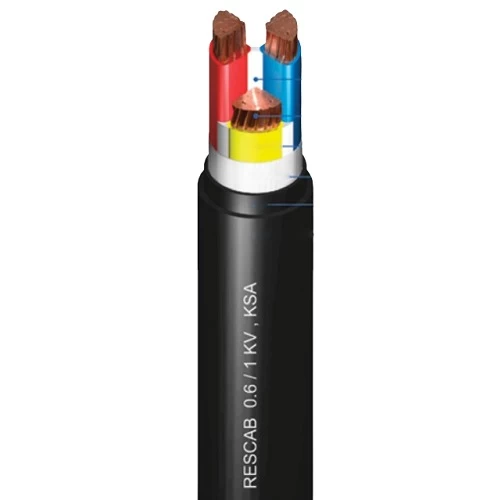

Unarmored Stranded copper power cable (CU/XLPE/PVC), 3 core, 120mm2 size conductor, 0.6/1kV, Provides excellent protection against electric shock, provides low resistance to electrical flow, manufactured by Red Sea Cables Company (RESCAB), insulation color (red, yellow, blue).
Product description
Unarmored Stranded copper power cable (CU/XLPE/PVC), Produced by Red Sea Cables (RESCAB) Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 120 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 1.2 mm
- Nominal Sheath Thickness: 2.1 mm
- Approx Overall Diameter: 41 mm
- Max DC Conductor Resistance at 20°C: 0.153 ohm/km
- Weight: 4200 kg/km
- Standard Length: 500 meters
- Phase Core Color: Red, Yellow, Blue
- Standard: IEC 60502-1
