CU/XLPE/PVC Stranded Copper Cable, 2 Core, 1.5mm, 0.6/1kV, 1000 m | BAHRA
(929 Product Views)

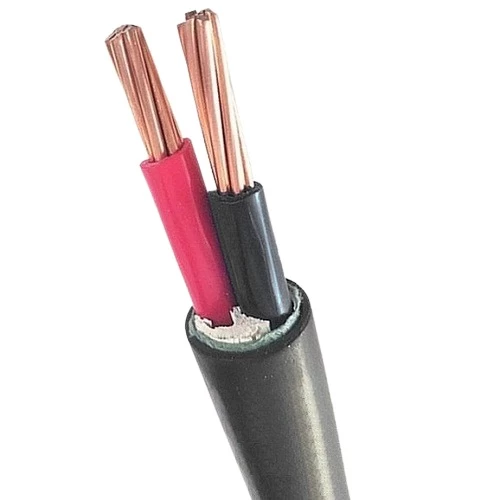

Unarmored stranded copper power cable (CU/XLPE/PVC), 2 core, 1.5mm2 size conductor, 0.6/1kV, PVC jacket provides additional protection to the conductor and insulation from shock, friction and corrosion, Red, Black, manufactured by Bahra Cables.
Product description
Unarmored stranded copper power cable (CU/XLPE/PVC), Produced by BAHRA Cables Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC (Polyvinyl Chloride)
- Voltage: 0.6/1kV
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 1.5 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 0.7 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 10.7 mm
- Weight: 165 kg/km
- Standard Length: 1000 meters
- Phase Core Colors: (Red, Black)
- Standard: IEC 60502-1
