Alfanar Cable 2 Core 16mm, Stranded Copper Conductor 0.6/1 kV, XLPE Insulated
(1366 Product Views)

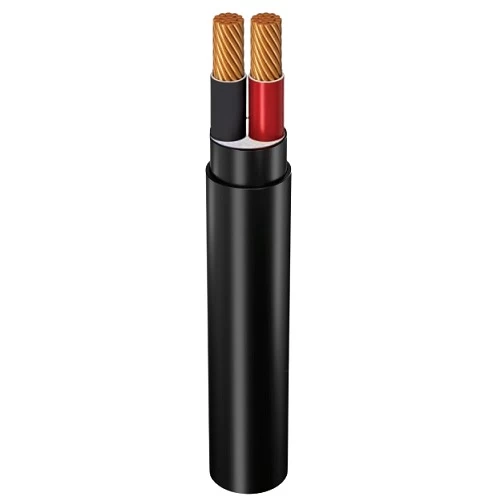

Two core stranded copper power cable (CU/XLPE/PVC/PVC), Coated with PVC (polyvinyl chloride), which provides additional protection for the cable from shock, friction and corrosion, produced by Al Fanar Company, size 16 mm2.
Product description
Two core stranded copper power cable (CU/XLPE/PVC/PVC), Produced by Al Fanar Company according to the International Electrotechnical Commission standard (IEC 60502-1). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Jacket: Double PVC
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 16 mm2
- Max DC Conductor Resistance at 20°C: 1.1500 ohm/km
- Max AC Conductor Resistance at 70°C: 1.4667 ohm/km
- Current Rating Laid in Ground: 118 Ampere
- Current Rating Laid In Ducts: 83 Ampere
- Current Rating Laid in Free Air: 110 Ampere
- Approx Overall Diameter: 17.8 mm
- Weight: 605 kg/km
- Phase Core Color: (Red, Black)
- Standard: IEC 60502-1
