SWA Armored Cable Solid Copper 2×6mm, 0.6/1kV, XLPE Insulated | Riyadh Cables
(930 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

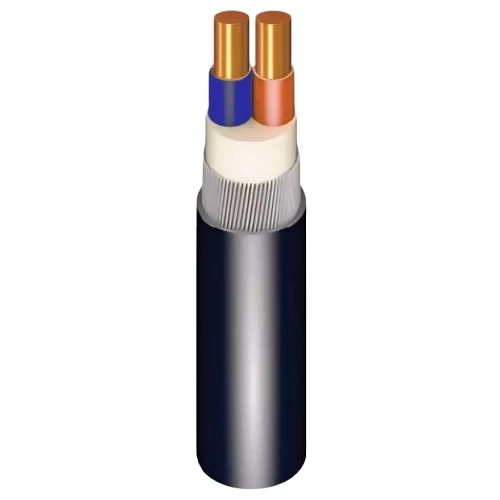

Two core armored electrical cable (CU/XLPE/SWA/PVC), solid copper conductor, Outer layer thickness 1.8mm, low voltage 600/1000V. According to the International Electrotechnical Commission (IEC 60502-1) standard. Steel Wire Armed (SWA), produced by Riyadh Cables Company, Size 6 mm2.
Product description
Two core armored electrical cable (CU/XLPE/SWA/PVC), solid copper conductor, Produced by Riyadh Cables Company. according to IEC 60502-1(International Electrotechnical Commission) standard. Armored with layer of steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. It is also sheathed with a high-quality PVC (polyvinyl chloride) that provides additional protection against corrosion and mechanical damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC (Polyvinyl Chloride)
- Voltage : 600/1000 volts
- Conductor Shape: Solid (re)
- Number of Cores: 2 Core
- Conductor Size (Cross-Sectional Area): 6 mm2
- Number of Wires: 1
- Approx Conductor Diameter: 2.76 mm
- Nominal Insulation Thickness: 0.7 mm
- Armoring: SWA (Steel Wire Armor)
- Nominal Steel Wire Diameter: 0.8 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 16 mm
- Weight: 525 kg/km
- Length : 1000 meters
- Phase Core Colors: (Brown, blue)
- Standard: IEC 60502-1
Additional Information▼
SWA Armored Cables: When to Choose This Type?
When searching for SWA Armored Cables, the primary purpose is to obtain higher mechanical protection for the cable compared to unarmored cables. The steel wire armoring (SWA) helps resist pressure and impacts during installation or when passing through areas prone to abrasion, making this type suitable for applications that require additional durability on-site.
Advantages of SWA Armored Cable (CU/XLPE/SWA/PVC) – Size 6 mm²
- Solid copper conductor with 2 cores for a stable and reliable connection.
- XLPE insulation and PVC outer sheath for increased reliability and protection in common project applications.
- Low voltage 600/1000 volts within the low voltage cable classification.
- Insulation colors: Brown, Blue for easy identification during connection.
- Compliant with IEC 60502-1 standard for standardizing technical requirements.
Quick Specifications (for review before purchase)
| Manufacturer | Riyadh Cables |
|---|---|
| Classification | Low Voltage Cables |
| Construction | CU/XLPE/SWA/PVC |
| Size | 6 mm² |
| Number of Cores | 2 cores |
| Conductor Shape | Solid |
| Voltage | 600/1000 volts |
| Length | 1000 meters |
| Insulation Color | Brown, Blue |
| Insulation/Sheath | XLPE / PVC |
Quick Selection Guidelines for SWA Armored Cables
- Check the size (6 mm²) and ensure it is suitable for the electrical load and project requirements (it is advisable to consult the engineer/technician).
- Ensure the required voltage is within 600/1000 volts.
- Select the number of cores based on the required connection; this product has two cores.
- Review the manufacturing standard such as IEC 60502-1 to ensure specification compliance.
