4mm 0.6/1kV Two Core Stranded Copper Power Cable, Armored with Steel Wires, XLPE Insulated | Jeddah Cables

4mm 0.6/1kV Two Core Stranded Copper Power Cable, Armored with Steel Wires, XLPE Insulated | Jeddah Cables

(513 Product Views)

YouMats

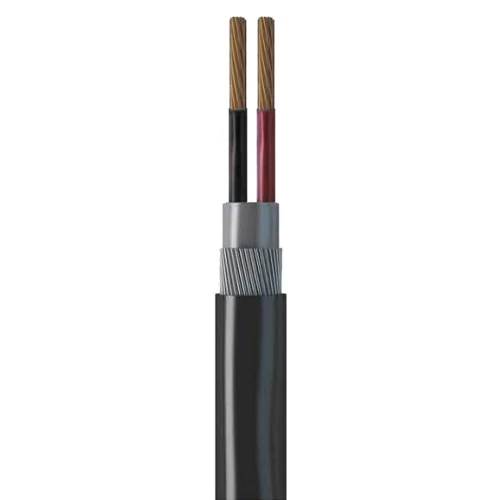

Two core stranded copper armored cable (CU/XLPE/SWA/PVC), size 4 mm2, Insulation color (red, black), reinforced with steel wires (SWA) to give it mechanical rigidity, produced by Jeddah Company.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Two core stranded copper armored cable (CU/XLPE/SWA/PVC), Produced by Jeddah Company, according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures  up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

  • Conductor Type: Copper
  • Insulation Material: XLPE (Cross-Linked Polyethylene)
  • Bedding: PVC Compound (or LSHF or PE)
  • Jacketing: PVC Compound (or LSHF or PE)
  • Armouring: Steel Wires (SWA)
  • Voltage: 600/1000 volts
  • Conductor Shape: Round Stranded (rm)
  • Number of Cores: 2
  • Conductor Size (Cross-Sectional Area): 4 mm2
  • Nominal Insulation Thickness: 0.7 mm
  • Nominal Diameter of Steel Tape: 0.9 mm
  • Nominal Sheath Thickness: 1.8 mm
  • Approx Overall Diameter: 15.2 mm
  • Weight: 470 kg/km
  • Max DC Conductor Resistance at 20°C: 4.610 ohm/km
  • Current Rating Laid in Ground: 58 Ampere
  • Current Rating Laid in Ducts: 48 Ampere
  • Current Rating Laid in Free Air: 53 Ampere
  • Phase Core Colors: (Red, Black)
  • Standard: IEC 60502-1
