4×6 mm Stranded Copper Electric Cable 600/1000V, SWA armed, XLPE Insulated | Riyadh Cables

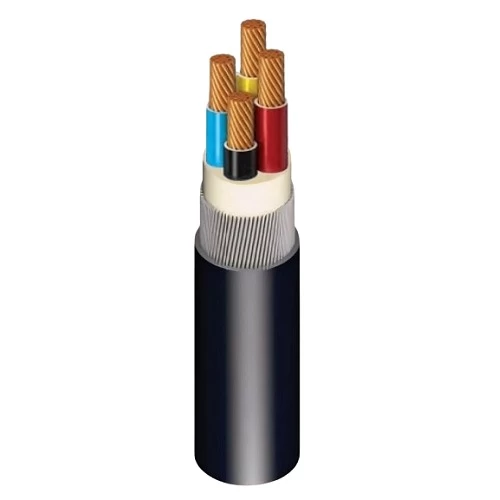

4 core stranded copper electrical cable (CU/XLPE/SWA/PVC), produced by Riyadh Cables Company, Armored with layer of steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. It is also jacketed with a high-quality PVC (polyvinyl chloride) outer sheath that provides additional protection against corrosion, heat and moisture damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Sheath: PVC
• Voltage: 600/1000 volts
• Conductor Type: Round Stranded (rm)
• Number of Cores: 4 Core
• Conductor Size (Cross-Sectional Area): 6 mm2
• Number of wires: 7
• Approx Conductor Diameter: 3.12 mm
• Nominal Insulation Thickness: 0.7 mm
• Armoring: SWA (Steel Wire Armor)
• Nominal Steel Wire Diameter: 1.25 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 20 mm
• Weight: 850 kg/km
• Cable Length: 1000 meters
• Phase Core Color: (Red, Yellow, Blue, Black)
• Overall Diameter Tolerance: -2%, +8%
• Packing Tolerance Range: ±5%
• Conformity According to International Standard: IEC 60502-1
