35mm 2 Core Stranded Copper Cable, SWA Armoured, XLPE Insulated, 0.6/1kV | Alfanar

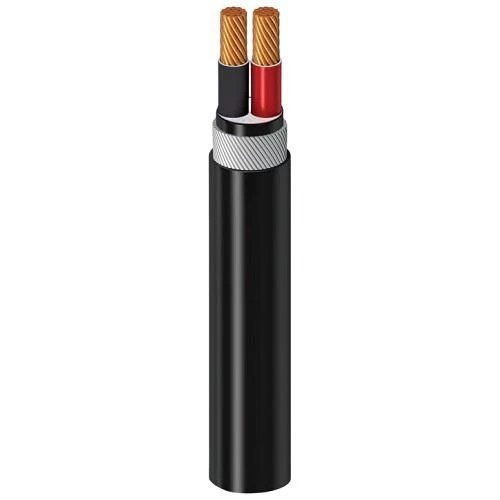

Two core stranded copper armored cable (CU/XLPE/SWA/PVC), Produced by Alfanar Company, Armored with single layer of round galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures  up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor Type: Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Single Layer of Round Galvanized Steel Wires (SWA)
• Outer Jacket: PVC (Polyvinyl Chloride)
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 35 mm2
• Max DC Conductor Resistance at 20°C: 0.5240 ohm/km
• Max AC Conductor Resistance at 90°C: 0.6688 ohm/km
• Current Rating Laid in Ground: 180 Ampere
• Current Rating Laid in Ducts: 138 Ampere
• Current Rating Laid in Free Air: 188 Ampere
• Approx Overall Diameter: 26.2 mm
• Weight: 1780 kg/km
• Phase Core Colors: (Red, Black)
• Standard: IEC 60502-1
