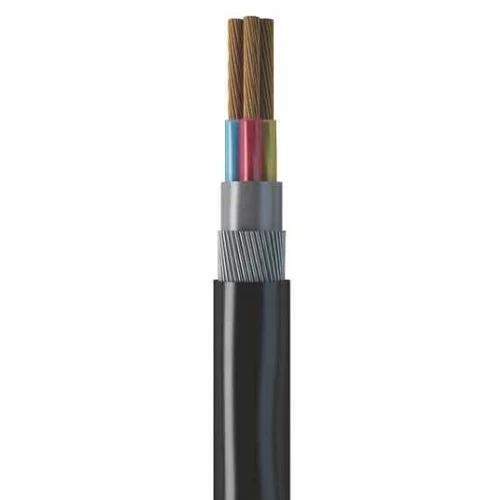

2.5 sq mm Three Core 600/1000 volts Power Cable, Stranded Copper XLPE Insulated, Armored with Steel Wires | Jeddah Cables
(1261 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
3 core stranded copper armored cable (CU/XLPE/SWA/PVC), size 2.5 mm2, Available in a variety of sizes and colors with the highest quality and best prices, produced by Jeddah Company.
Product description
3 core stranded copper armored cable (CU/XLPE/SWA/PVC), Produced by Jeddah Company, according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Bedding: PVC Compound (or LSHF or PE)
- Jacketing: PVC Compound (or LSHF or PE)
- Armouring: Steel Wires (SWA)
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 2.5 mm2
- Nominal Insulation Thickness: 0.7 mm
- Nominal Diameter of Steel Tape: 0.9 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 14.7 mm
- Weight: 435 kg/km
- Max DC Conductor Resistance at 20°C: 7.410 ohm/km
- Current Rating Laid in Ground: 41 Ampere
- Current Rating Laid in Ducts: 35 Ampere
- Current Rating Laid in Free Air: 37 Ampere
- Phase Core Colors: (red, yellow, blue)
- Standard: IEC 60502-1
