4x240mm2 Stranded Copper Cable XLPE Insulated, SWA Armed, 600/1000 Volts | Alfanar
(1506 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

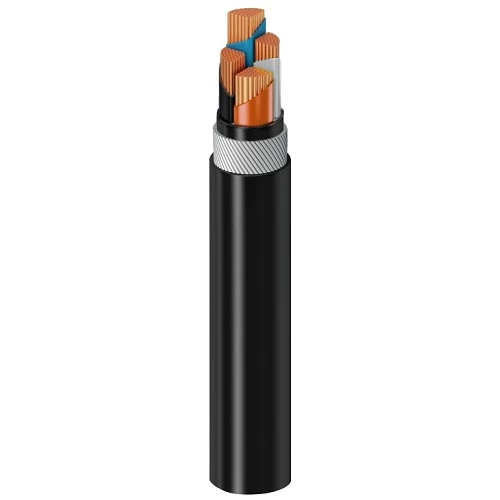

Four core stranded copper armored cable (CU/XLPE/SWA/PVC), size 240mm2, low voltage 600/1000V, phase core color is brown, balck, grey and blue. It offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use, it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance produced by Alfanar Company.
Product description
Stranded copper armored cable (CU/XLPE/SWA/PVC), produced by Alfanar Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with single layer of round galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Copper
- Insulation Material: Cross-Linked Polyethylene (XLPE)
- Bedding: Extruded Layer of Polyvinyl Chloride (PVC)
- Armouring: Single Layer of Round Galvanized Steel Wires (SWA)
- Outer Jacket: Polyvinyl Chloride (PVC)
- Voltage: 600/1000 volts
- Conductor Shape: Sector Shaped (sm)
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 240 mm2
- Max DC Conductor Resistance at 20°C: 0.0754 ohm/km
- Max AC Conductor Resistance at 90°C: 0.1012 ohm/km
- Current Rating Laid in Ground: 400 Ampere
- Current Rating Laid in Ducts: 336 Ampere
- Current Rating Laid in Free Air: 470 Ampere
- Approx Overall Diameter: 60.9 mm
- Weight: 12680 kg/km
- Phase Core Colors: (Brown, Black, Grey, Blue)
- Standard: IEC 60502-1
