16mm Four Core Copper XLPE Power Cable, SWA Armed, Low Voltage 0.6/1kV | Alfanar
(947 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

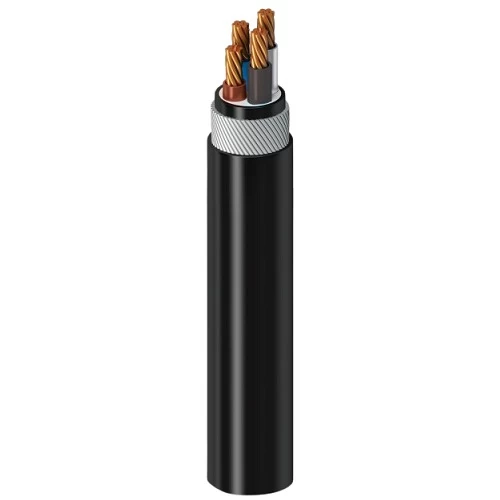

Four core stranded copper armored cable (CU/XLPE/SWA/PVC) produced by Alfanar Company. size 16mm2 , low voltage 600/1000V, phase core color is brown, black, grey and blue, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion and corrosion.
Product description
Stranded copper armored cable (CU/XLPE/SWA/PVC), produced by Alfanar Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with single layer of round galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Copper
- Insulation Material: Cross-Linked Polyethylene (XLPE)
- Bedding: Extruded Layer of Polyvinyl Chloride (PVC)
- Armouring: Single Layer of Round Galvanized Steel Wires (SWA)
- Outer Jacket: Polyvinyl Chloride (PVC)
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 16 mm2
- Max DC Conductor Resistance at 20°C: 1.1500 ohm/km
- Max AC Conductor Resistance at 90°C: 1.4667 ohm/km
- Current Rating Laid in Ground: 96 Ampere
- Current Rating Laid in Ducts: 72 Ampere
- Current Rating Laid in Free Air: 96 Ampere
- Approx Overall Diameter: 22.6 mm
- Weight: 1305 kg/km
- Phase Core Colors: (Brown, Black, Grey, Blue)
- Standard: IEC 60502-1
