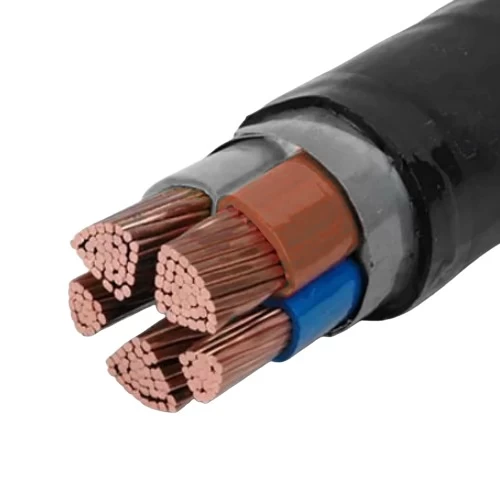

CU/XLPE/STA/PVC Stranded Armoured Electric Cable, 4.5 Core, 4x400+185 sq mm, 0.6/1kV, 300 meter/Drum | BAHRA

Armored stranded copper power cable (CU/XLPE/STA/PVC), Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with galvanized double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, it is sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, and corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes, and conductor ratings to meet diverse application requirements.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4.5 (4 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): ( 4cx400 mm2 ) + 185mm2
• Number of Phase Wires: 61
• Number of Neutral Wires: 37
• Nominal Insulation Thickness of Phase: 2.0 mm
• Nominal Insulation Thickness of Neutral: 1.6 mm
• Nominal Steel Tape Thickness: 0.5 mm
• Nominal Sheath Thickness: 3.2 mm
• Approx Overall Diameter: 70.7 mm
• Weight: 15587 kg/km
• Standard Length: 300 meters
• Phase Core Colors: (Blue, Brown, Black, Grey, Green/Yellow)
• Standard: BS 5467
