25mm 2 Core Stranded Copper Cable, STA Armed, XLPE Insulated, 0.6/1 kV | Alfanar
(995 Product Views)

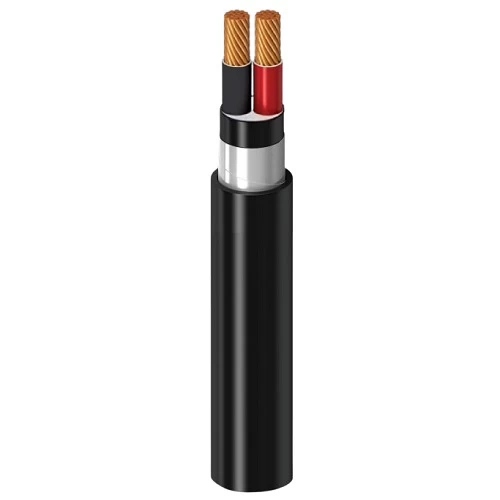

Two core stranded copper armored cable (CU/XLPE/STA/PVC), conductor size 25 mm2 , phase core colors red and black, insulated with XLPE (cross-linked polyethylene), where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance, produced by Alfanar Company.
Product description
Two core stranded copper armored cable (CU/XLPE/STA/PVC). Produced by Alfanar Company, Armored with double layers of galvanized steel tapes (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Armouring: Double Layers of Galvanized Steel Tapes (STA)
- Outer Jacket: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 25 mm2
- Max DC Conductor Resistance at 20°C: 0.7270 ohm/km
- Max AC Conductor Resistance at 70°C: 0.9275 ohm/km
- Current Rating Laid in Ground: 148 Ampere
- Current Rating Laid in Ducts: 111 Ampere
- Current Rating Laid in Free Air: 148 Ampere
- Approx Overall Diameter: 21.7 mm
- Weight: 1000 kg/km
- Phase Core Colors: (Red, Black)
- Standard: IEC 60502-1
