CU/XLPE/AWA/PVC Armored Copper Cable, Single Core Stranded 150mm 0.6/1kV | Alfanar
(895 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

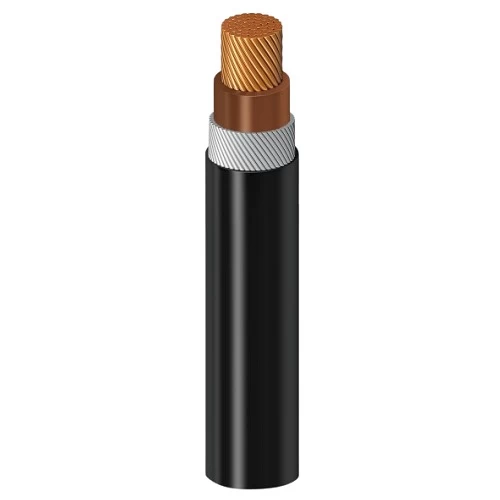

Single core stranded copper armored cable (CU/XLPE/AWA/PVC), conductor size 150 mm2 , phase core color brown, Insulated with XLPE (cross-linked polyethylene), that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, produced by Alfanar Company.
Product description
Single core stranded copper armored cable (CU/XLPE/AWA/PVC), Produced by Alfanar Company, Armored with layer of aluminum wires (AWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Armouring: Single Layer of Round Non-Magnetic (Aluminium) Wires
- Outer Jacket: PVC (Polyvinyl Chloride)
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: Single Core
- Conductor Size (Cross-Sectional Area): 150 mm2
- Approx Overall Diameter: 26.0 mm
- Weight: 1860 kg/km
- Max DC Conductor Resistance at 20°C: 0.1240 ohm/km
- Max AC Conductor Resistance at 90°C: 0.1598 ohm/km
- Current Rating Buried Direct in Ground (Trefoil): 323 Ampere
- Current Rating Buried Direct in Ground (Flat Touched): 318 Ampere
- Current Rating In Buried Ducts (Trefoil): 284 Ampere
- Current Rating In Buried Ducts (Flat Touched): 291 Ampere
- Current Rating In Free Air (Trefoil): 403 Ampere
- Current Rating In Free Air (Flat Touched): 400 Ampere
- Current Rating In Free Air (Flat Spaced): 461 Ampere
- Phase Core Color: Brown
- Standard: IEC 60502-1
