3x50+25 mm 600/1000V Cable, Aluminum Conductor XLPE Insulated, PVC Sheathed, Armored with Steel Wires | Jeddah Cables
(904 Product Views)

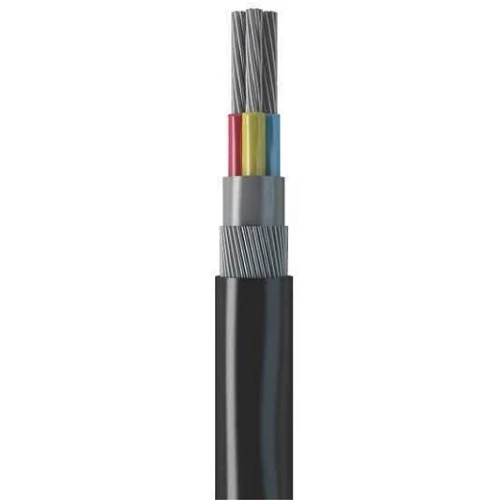

3.5 core stranded aluminum cable (AL/XLPE/SWA/PVC), conductor size 3x50+25mm2, low voltage 600/1000V. Produced by Jeddah Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications, phase core colors is red, yellow, blue and black.
Product description
Power cable (AL/XLPE/SWA/PVC), produced by Jeddah Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Aluminum
- Voltage: 600/1000 volts
- Conductor Shape: Drawn Aluminum Wires
- Insulation Material: XLPE (or PVC or LSHF)
- Bedding: PVC Compound (or LSHF or PE)
- Armouring: Steel Wires (SWA)
- Jacketing: PVC Compound (or LSHF or PE)
- Number of Cores: 3 Core + Neutral
- Conductor Size (Cross-Sectional Area): 3×50+25 mm2
- Nominal Insulation Thickness (ph/N): 1/0.9 mm
- Nominal Diameter of Steel Wires: 2 mm
- Nominal Sheath Thickness: 1.9 mm
- Approx Overall Diameter: 31.6 mm
- Weight: 1870 kg/km
- Max DC Conductor Resistance at 20°C (ph/N): 0.641 /1.2 ohm/km
- Current Rating Laid in Ground: 165 Ampere
- Current Rating Laid in Ducts: 129 Ampere
- Current Rating Laid in Free Air: 158 Ampere
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
