3.5 Core Stranded Aluminium Power Cable, 3x400+185mm2, XLPE Insulated, STA Armoured, 0.6/1kV, Length 250 meter | Red Sea Cables
(505 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

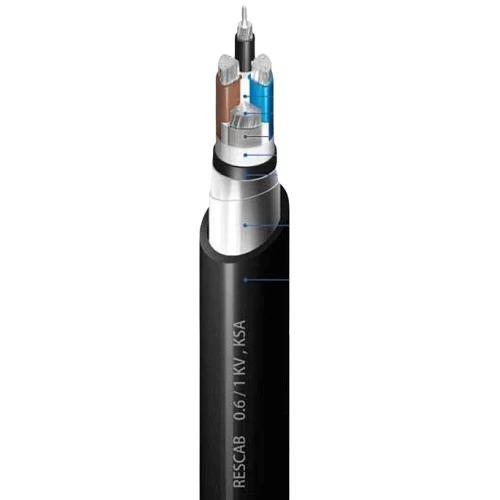

Armoured stranded aluminium power cable (AL/XLPE/STA/PVC), 3 core + neutral line, 3x400+185mm2 size conductor, 0.6/1kV, Produced by Red Sea Cables (RESCAB) Company. The design reinforced with STA steel tape provides robust protection against mechanical factors such as rocks and soil stress.
Product description
Armoured stranded aluminium power cable (AL/XLPE/STA/PVC), Produced by Red Sea Cables (RESCAB) Company. Armored with a layer of galvanized steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, and corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes, and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Aluminium
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Armoring: Steel Tape (STA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx400 mm2 ) + 185mm2
- Number of Phase Wires: 61
- Number of Neutral Wires: 37
- Nominal Insulation Thickness of Phase: 2.0 mm
- Nominal Insulation Thickness of Neutral: 1.6 mm
- Nominal Steel Tape Thickness: 0.5 mm
- Nominal Sheath Thickness: 3.3 mm
- Approx Overall Diameter: 72 mm
- Max DC Conductor Resistance at 20°C (Ph): 0.0778 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 0.164 ohm/km
- Weight: 7130 kg/km
- Standard Length: 250 meters
- Phase Core Colors: (Blue, Brown, Black, Grey)
- Standard: BS 5467, 6346 Latest
