Single Core Aluminium Electric Cable 240mm 0.6/1kV, AWA Armed, XLPE Insulation, Brown Color, 1000 meter | RESCAB

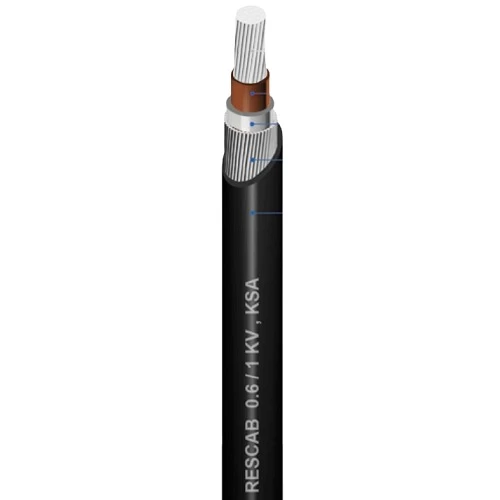

Armoured stranded aluminium power cable (AL/XLPE/AWA/PVC), Produced by Red Sea Cables (RESCAB) Company. Armored with layer of aluminum wires (AWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor: Stranded Aluminium
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armoring: Aluminum Wires (AWA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 240 mm2
• Number of wires: 37
• Nominal Insulation Thickness: 1.7 mm
• Nominal Aluminium Wire Diameter: 1.8 mm
• Nominal Sheath Thickness: 1.9 mm
• Approx Overall Diameter: 33 mm
• Max DC Conductor Resistance at 20°C: 0.125 ohm/km
• Weight: 1520 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Brown
• Standard: IEC 60502-1
