Stranded Aluminum Cable 4x120+70mm 0.6/1kV, XLPE Insulated, PVC Sheathed, Length 1000 M | BAHRA
(540 Product Views)

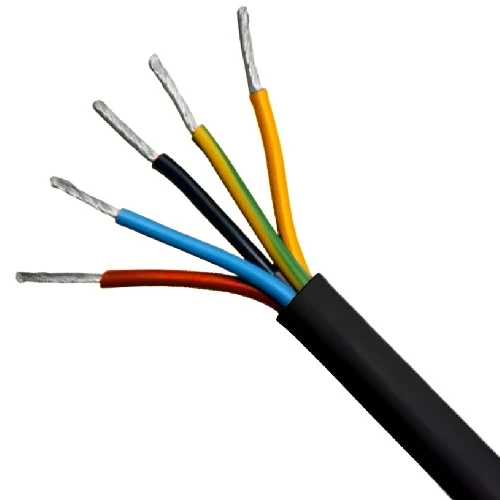

Stranded aluminum cable, (AL/XLPE/PVC), 4×120+70 mm, voltage 0.6/1kV, XLPE insulation enhances heat resistance and electrical efficiency for optimal performance. Produced by BAHRA Cables.
Product description
Unarmored stranded aluminum power cable (AL/XLPE/PVC), Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, it is sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, and corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes, and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Aluminum
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4.5 (4 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 4cx120 mm2 ) + 70mm2
- Number of Phase Wires: 19
- Number of Neutral Wires: 19
- Nominal Insulation Thickness of Phase: 1.2 mm
- Nominal Insulation Thickness of Neutral: 1.1 mm
- Nominal Sheath Thickness: 2.2 mm
- Approx Overall Diameter: 37.7 mm
- Weight: 1805 kg/km
- Standard Length: 1000 meters
- Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yellow)
- Standard: IEC 60502-1
