Four Core 70 sq mm Electric Cable 0.6/1kV, Stranded Aluminum Conductor, XLPE Insulation, 500 meter Length | SCC
(582 Product Views)

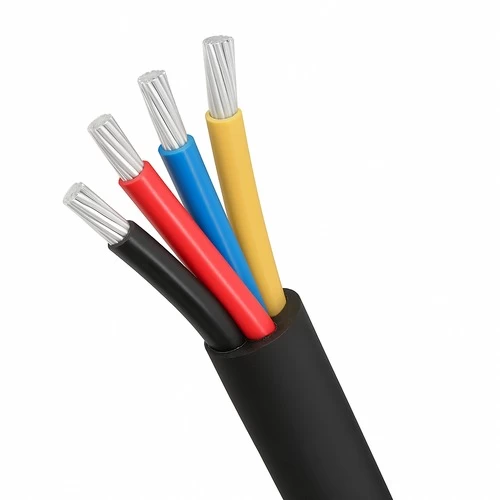

Stranded copper power cable (AL/XLPE/PVC), 4 core, 70mm² size conductor, low voltage 0.6/1 kV, excellent performance under high temperatures and low power loss, produced by Saudi Cables Company (SCC).
Product description
Stranded aluminum power cable (AL/XLPE/PVC), produced by Saudi Cables Company (SCC). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes, and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Aluminum
- Insulation Material: XLPE (cross-linked polyethylene) rated 90°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 70 mm2
- Number of wires: 12
- Nominal Insulation Thickness: 1.1 mm
- Nominal Sheath Thickness: 2.0 mm
- Approx Overall Diameter: 31.2 mm
- Weight: 1295 kg/km
- Standard Length: 500 meters
- Phase Core Color: Red, Yellow, Blue, Black
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: RNH4-16A
