70 sq mm Three Phase Aluminium Cable, XLPE Insulated, PVC Sheath, Length 500 meter | Red Sea Cables
(1110 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

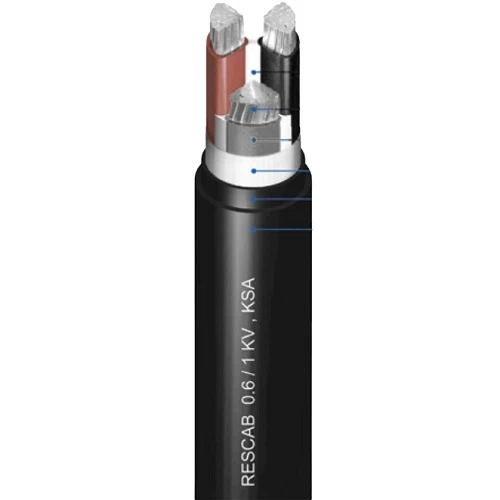

Stranded aluminum cable (AL/XLPE/PVC), 3 core, 70 mm, low voltage 0.6/1kV. XLPE insulation provides excellent electrical performance. PVC sheath guarantees protection against corrosion and impacts and is ideal for industrial applications. Made by Red Sea Cables.
Product description
Stranded aluminum power cable (AL/XLPE/PVC), Produced by Red Sea Cables (RESCAB) Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, it is sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, and corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes, and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Aluminium
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 70 mm2
- Number of wires: 19
- Nominal Insulation Thickness: 1.1 mm
- Nominal Sheath Thickness: 1.9 mm
- Approx Overall Diameter: 33 mm
- Max DC Conductor Resistance at 20°C: 0.443 ohm/km
- Weight: 2540 kg/km
- Standard Length: 500 meters
- Phase Core Color: Brown, Black, Grey
- Standard: BS 5467, 6346 Latest
