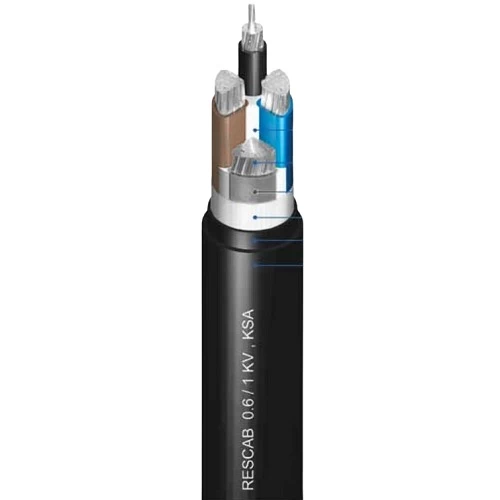

Stranded aluminum cable (AL/XLPE/PVC), 3 core + neutral line, 3×70+35mm2 size conductor, 0.6/1kV, produced by Red Sea Cables (RESCAB) Company, sheathed with PVC material, ensures reliable performance in both indoor and outdoor environments.
Product description
Stranded aluminum power cable (AL/XLPE/PVC), produced by Red Sea Cables (RESCAB) Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Aluminum
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx70 mm2 ) + 35mm2
- Number of Phase Wires: 19
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1.1 mm
- Nominal Insulation Thickness of Neutral: 0.9 mm
- Nominal Sheath Thickness: 1.9 mm
- Approx Overall Diameter: 35 mm
- Max DC Conductor Resistance at 20°C (Ph): 0.443 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 0.868 ohm/km
- Weight: 1340 kg/km
- Standard Length : 500 meters
- Phase Core Colors: (Blue, Brown, Black, Grey)
- Standard: BS 5467, 6346 Latest
Additional Information▼
The aluminum cable complies with important international standards that ensure excellent performance and enhanced safety in the Kingdom of Saudi Arabia. In addition to its corrosion resistance and high electrical conductivity, this cable is an economical choice for large projects due to its excellent energy efficiency.
During installation, it is essential to follow the guidelines to ensure optimal performance. The cable is easily installed with attention to pulling and bending instructions to maintain its flexibility and effectiveness. It is recommended to use appropriate fastening tools to minimize corrosion from various environmental conditions.
