3.5 Core 3x120+70 mm 600/1000 Volts Aluminum Cable, XLPE Insulated, PVC Sheath | Jeddah Cables
(1246 Product Views)

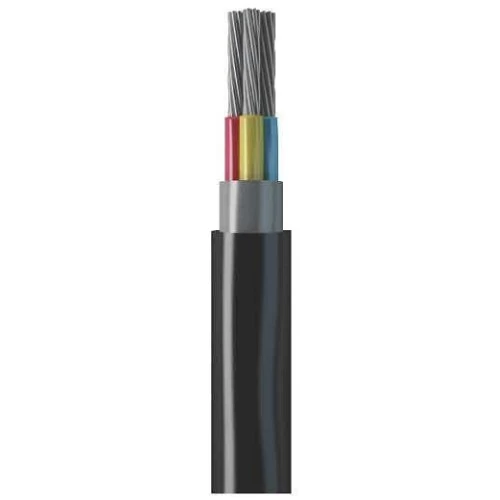

3.5 core stranded aluminum cable, XLPE insulated, size 3×120+70mm2 , 0.6/1kV, phase core colors is red, yellow, blue and black, produced by Jeddah Company, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion and corrosion.
Product description
Stranded cable (AL/XLPE/PVC) produced by Jeddah Company according to the International Electrotechnical Commission standard (IEC 60502-1). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Aluminum
- Conductor Shape: Drawn Aluminum Wires
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Bedding: PVC Compound (or LSHF or PE)
- Jacketing: PVC Compound (or LSHF or PE)
- Voltage: 600/1000 volts
- Number of Cores: 3 Core + Neutral
- Conductor Size (Cross-Sectional Area): 3x120+70 mm2
- Nominal Insulation Thickness: 1.2/1.1 mm
- Nominal Sheath Thickness: 2.2 mm
- Approx Overall Diameter: 37.8 mm
- Weight: 1795 kg/km
- Max DC Conductor Resistance at 20°C: 0.253/0.443 ohm/km
- Current Rating Laid in Ground: 268Ampere
- Current Rating Laid in Ducts: 222 Ampere
- Current Rating Laid in Free Air: 263 Ampere
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
