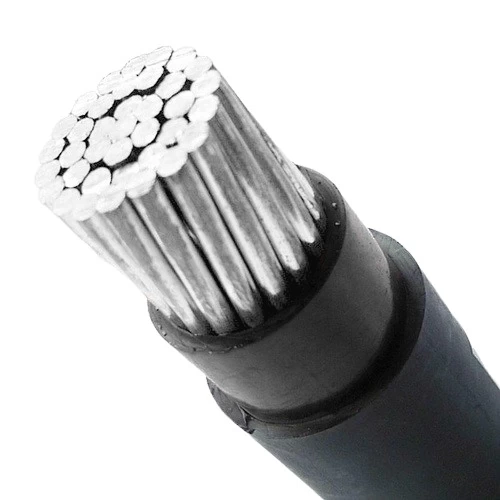

Single Core Cable 35mm 0.6/1kV, Stranded Aluminium Conductor, XLPE Insulation, Black Color, 1000 meter | RESCAB

Single Core Cable 35mm 0.6/1kV, Stranded Aluminium Conductor, XLPE Insulation, Black Color, 1000 meter | RESCAB

(594 Product Views)

Unarmored stranded aluminum cable (AL/XLPE/PVC), 1-core, 35 mm², rated for 0.6/1 kV, manufactured by Red Sea Cables (RESCAB). it is designed to withstand high temperatures of up to 90°C for prolonged periods without affecting its performance.

in stock

Quantity

Call Now

🔗 Related Content

Red Sea Cables Company Straight Perforated Cable Tray, GI,... 4 Core 16 mm Stranded Copper Cable... Alfanar Cable 1.5 mm Single Core, S... Jeddah Cable Price List Single Core Cable 35mm 0.6/1kV, Str... Single Core electric Cable 25mm 0.6... Single Core Cable 35mm 0.6/1kV, Str...

Product description

Unarmored stranded aluminium power cable (AL/XLPE/PVC), single core, Produced by Red Sea Cables (RESCAB) Company . Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

Conductor: Stranded Aluminium
Insulation Material: XLPE (Cross-Linked Polyethylene)
Outer Sheath: PVC
Voltage: 0.6/1kV
Number of Cores: 1
Conductor Size (Cross-Sectional Area): 35 mm2
Number of wires: 7
Nominal Insulation Thickness: 0.9 mm
Nominal Sheath Thickness: 1.4 mm
Approx Overall Diameter: 13 mm
Max DC Conductor Resistance at 20°C: 0.868 ohm/km
Weight: 205 kg/km
Standard Length: 1000 meters
Phase Core Color: Black
Standard: IEC 60502-1

Additional Information▼

Applications and Uses of 35 mm² Aluminum Cable

The 35 mm² aluminum cable from Red Sea Cables (RSC) is the preferred choice for many engineering projects in the Kingdom of Saudi Arabia due to its high efficiency and cost-effectiveness compared to copper in certain applications. This cable is widely used in:

Commercial and Industrial Buildings: As part of main and sub-distribution networks within facilities.
Outdoor Connections: Due to its UV-resistant jacket and moisture resistance, it is ideal for outdoor connections without the need for complex additional protection.
Substations: Used for connections between transformers and switchgear within the low voltage range (0.6/1 KV).

Technical Advantages of XLPE Aluminum Cable

The XLPE (Cross-Linked Polyethylene) insulation material used in this cable can withstand high operating temperatures up to 90 degrees Celsius, reducing the risk of melting in the hot Saudi climate. Additionally, the cable's resistance to chemicals makes it a safe option for industrial areas exposed to chemical emissions.

Quick Buying Guide (for Engineers and Contractors)

When ordering 35 mm² Aluminum Cable, ensure the following technical specifications match your electrical plan to guarantee compatibility:

Conductor: Stranded aluminum (ensures better flexibility during installation).
Voltage: 0.6/1 KV (suitable for residential, commercial, and light industrial equipment).
Length: 1000 meters (reduces connection and storage costs).
