Single Core Cable 16mm 0.6/1kV, Stranded Aluminium Conductor, XLPE Insulation, Red Color, 2000 meter | RESCAB
(371 Product Views)

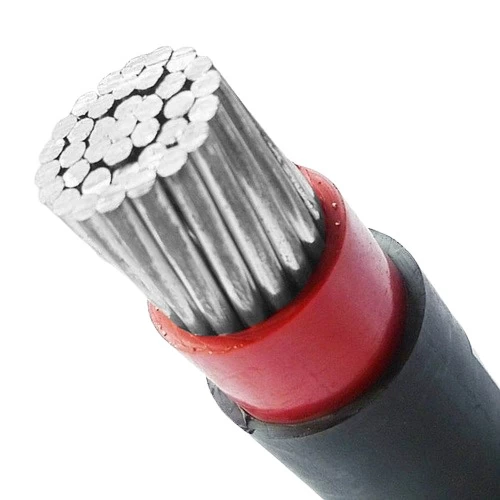

Unarmored stranded aluminium power cable (AL/XLPE/PVC), single core, 16mm2 size، 0.6/1kV conductor, Produced by Red Sea Cables (RESCAB) Company. It provides excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use.
Product description
Unarmored stranded aluminium power cable (AL/XLPE/PVC), single core,Produced by Red Sea Cables (RESCAB) Company . Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Aluminium
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 1
- Conductor Size (Cross-Sectional Area): 16 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 0.7 mm
- Nominal Sheath Thickness: 1.4 mm
- Approx Overall Diameter: 10 mm
- Max DC Conductor Resistance at 20°C: 1.91 ohm/km
- Weight: 115 kg/km
- Standard Length: 2000 meters
- Phase Core Color: Red
- Standard: IEC 60502-1
