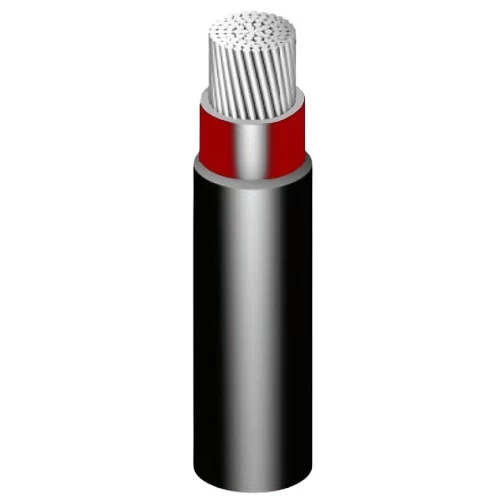

Single Core 70 mm Stranded Aluminum Cable 600/1000V, XLPE Insulated, PVC Sheathed | Riyadh Cables
(1573 Product Views)
Single core stranded aluminum power cable (AL/XLPE/PVC), XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications, cross-sectional area 1×70 mm2, red color, produced by Riyadh Cables Company.
Product description
Single core stranded aluminum power cable (AL/XLPE/PVC), Produced by Riyadh Cables Company, Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. It is also jacketed with a high-quality PVC (polyvinyl chloride) outer sheath that provides additional protection against corrosion and mechanical damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Aluminum
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC (Polyvinyl Chloride)
- Voltage: 600/1000 volts
- Conductor Shape: Stranded (rm)
- Number of Cores: Single Core
- Conductor Size (Cross-Sectional Area): 70 mm2
- Number of Wires: 19
- Approx Conductor Diameter: 10.55 mm
- Nominal Insulation Thickness: 1.1 mm
- Nominal Sheath Thickness: 1.4 mm
- Approx Overall Diameter: 16 mm
- Weight: 325 kg/km
- Cable Length: 1000 meters
- Phase Core Color: Red
- Standard: IEC 60502-1
