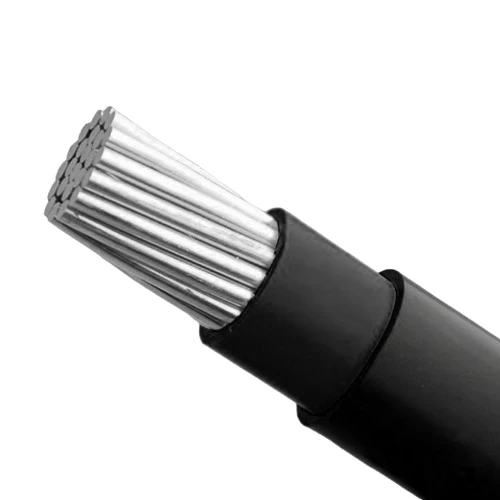

120 mm 0.6/1kV 1C Power Cable, Stranded Aluminum Conductor, XLPE Insulated, Black Color, Length 1000 meter | BAHRA

Unarmored stranded aluminum power cable (AL/XLPE/PVC), single core, Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor: Stranded Aluminum
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Sheath:  PVC (Polyvinyl Chloride)
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 120mm2
• Number of wires: 19
• Nominal Insulation Thickness: 1.2 mm
• Nominal Sheath Thickness: 1.5mm
• Approx Overall Diameter: 18.7mm
• Weight: 504 kg/km
• Standard Length: 1000  meters
• Phase Core Color: Black
• Standard: IEC 60502-1
