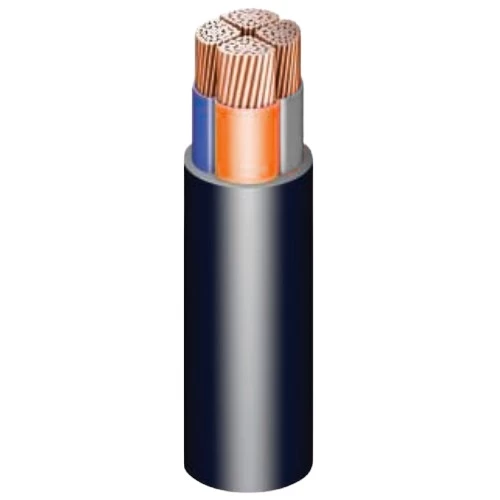

Riyadh Cable Stranded Copper, XLPE Insulated, LSHF Sheathed, 4 Core 185mm 0.6/1kV

Low smoke halogen free electric cable (CU/XLPE/LSHF), four core stranded copper conductor, Produced by Riyadh Cables Company. according to IEC 60502-1 standard. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of low smoke halogen-free compound (LSHF), non-toxic and environmentally friendly as it does not contain halogens and does not produce dense smoke or harmful fumes in case of fire. Making it ideal for use in public buildings such as airports, railway stations, computer rooms, data centers, and densely populated areas where fire and smoke emissions pose a potential threat to equipment and life. It generally works to reduce the risks caused by the after-effects of electrical fire. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Sheath: LSHF (Low Smoke Halogen Free)
• Voltage : 600/1000 volts
• Conductor Shape: Sectoral Stranded (sm)
• Number of Cores: 4 Core
• Conductor Size (Cross-Sectional Area): 185 mm2
• Number of wires: 30
• Nominal Insulation Thickness: 1.6 mm
• Nominal Sheath Thickness: 2.6 mm
• Approx Overall Diameter: 52 mm
• Weight: 7825 kg/km
• Length : 250 meters
• Phase Core Color: (blue, brown, black, grey)
• Standard: IEC 60502-1
