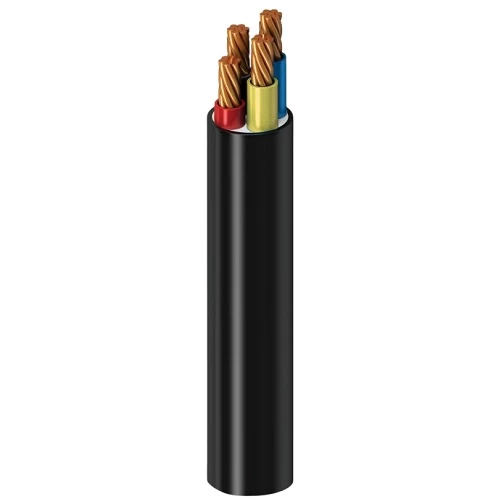

1.5 mm² 600/1000V Four Core Electrical Cable, Stranded Copper Conductor, XLPE Insulated, LSHF Sheathed | Alfanar
(555 Product Views)
Four core stranded copper cable (CU/XLPE/LSHF), 1.5 mm² size, with XLPE insulation providing durability and flexibility, making it suitable for a wide range of applications. The cable withstands temperatures up to 90°C and resists harsh environmental conditions. The LSHF sheath minimizes risks in case of fire. Produced by Alfanar.
Product description
four core stranded copper electrical cable(CU/XLPE/LSHF), produced by Alfanar Cables Company, provides a unique combination of strength, flexibility, and reliability, making it suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also resists harsh environmental conditions, including moisture, corrosion, and chemicals, making it ideal for outdoor use. Being chloride-free, it is environmentally friendly. Additionally, the cable is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizing smoke and toxic fumes in case of fire. Therefore, it is suitable for use in fixed installations and areas where smoke and acid gas emissions could pose a hazard to personnel or sensitive equipment, such as schools, hospitals, hotels, shopping centers, subways, etc. This cable is available in various shapes and sizes of the highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Solid
- Voltage: 600/1000 volts
- Insulation Material: PVC Compound Rated 70°C or 85°C (XLPE or LSHF)
- Jacketing: PVC Compound (or LSHF)
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 1.5 mm²
- Nominal Insulation Thickness: 0.8 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 12.10 mm
- Weight: 27 kg/km
- Max DC Conductor Resistance at 20°C: 12.100 ohm/km
- Current Rating Laid in Ground: 18 Ampere
- Current Rating Laid in Ducts: 23 Ampere
- Current Rating Laid in Free Air: 10.9 Ampere
- Color: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
