Riyadh Cable XLPE/LSHF Stranded Copper Conductor 3x10+6 mm2, 0.6/1 kV
(997 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

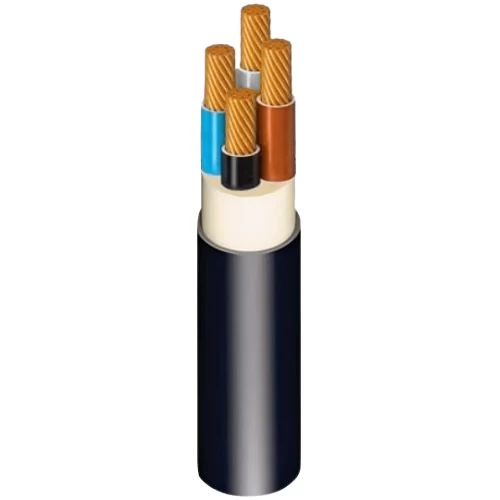

Stranded copper electrical cable 3 phase +neutral line, XLPE insulated LSHF sheathed, size 3×10+6 mm2, insulation colors (blue, brown, black, gray), insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications, Produced by Riyadh Cables Company.
Product description
Low smoke halogen free electrical cable (CU/XLPE/LSHF), 3.5 core, stranded copper condutor, Produced by Riyadh Cables Company, Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of low smoke halogen-free compound (LSHF), non-toxic and environmentally friendly as it does not contain halogens and does not produce dense smoke or harmful fumes in case of fire. Making it ideal for use in public buildings such as airports, railway stations, computer rooms, data centers, and densely populated areas where fire and smoke emissions pose a potential threat to equipment and life. It generally works to reduce the risks caused by the after-effects of electrical fire. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: LSHF (Low Smoke Halogen Free)
- Voltage: 600/1000 volts
- Phase Conductor Shape: Round Stranded (rm)
- Neutral Conductor Shape: Round Stranded (rm)
- Number of Cores: 3.5 (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3c×10 mm2 ) + 6 mm2
- Number of Phase Wires: 7
- Number of Neutral Wires: 7
- Approx Diameter of Phase Conductor: 4.01 mm
- Approx Diameter of Neutral Conductor: 3.12 mm
- Nominal Insulation Thickness of Phase: 0.7 mm
- Nominal Insulation Thickness of Neutral: 0.7 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 19 mm
- Weight: 640 kg/km
- Cable Length: 1000 meters
- Phase Core Colors: (Blue, Brown, Black, Gray)
- Standard: IEC 60502-1
