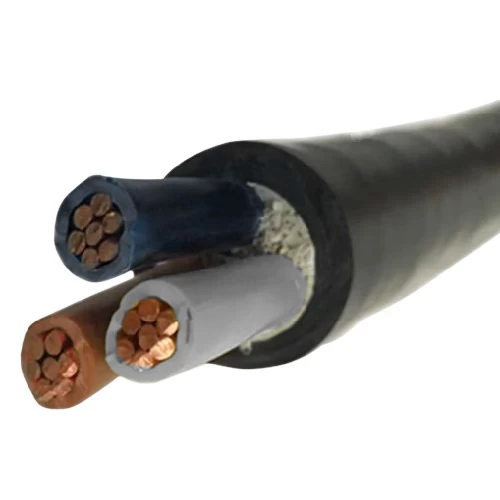

70 mm 3 Electric Core 0.6/1kV Cable, Stranded Copper, XLPE Insulation, LSF0H Sheath, 1000 meter | BAHRA

Low smoke halogen free copper cable (CU/XLPE/LSZH ), 3 core stranded, Produced by BAHRA Cables Company, Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of low smoke halogen-free compound (LSHF), non-toxic and environmentally friendly as it does not contain halogens and does not produce dense smoke or harmful fumes in case of fire. Making it ideal for use in public buildings such as airports, railway stations, computer rooms, data centers, and densely populated areas where fire and smoke emissions pose a potential threat to equipment and life. It generally works to reduce the risks caused by the after-effects of electrical fire. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs

• Conductor: Stranded Copper Wire
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Sheath: LSHF (Low Smoke Halogen Free)
• Voltage: 0.6/1kV
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 70 mm2
• Number of wires: 19
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.9   mm
• Approx Overall Diameter: 27.5 mm
• Weight:  2265 kg/km
• Standard Packaging Cable: 1000 meters
• Phase Core Color: Brown, Black, Gray
• Standard: BS 6724
