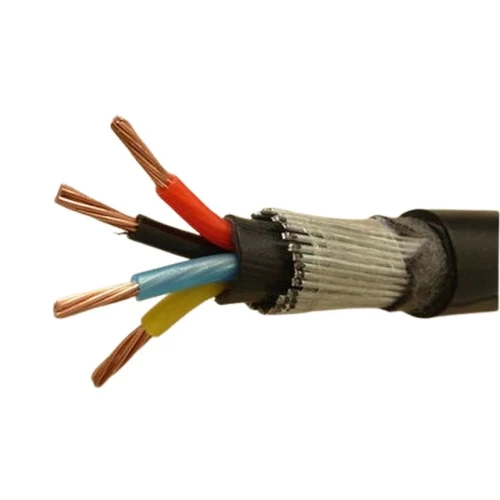

Stranded Armored Electrical Cable, Four Core 400 mm 0.6/1kV  CU/XLPE/SWA/ LS0H , 250 M Length | BAHRA

Stranded Armored Electrical Cable, Four Core 400 mm 0.6/1kV CU/XLPE/SWA/ LS0H , 250 M Length | BAHRA

(401 Product Views)

YouMats

Stranded Armored Electrical Cable, Four Core 400 mm 0.6/1kV  CU/XLPE/SWA/ LS0H, 250 M Length. Produced by BAHRA Cables Company. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), which minimizes smoke and toxic fumes in case of fire, therefore, it is suitable for use in fixed installations

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Stranded copper produced by BAHRA Cables Company. It is armored with a single layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. They are insulated with XLPE (cross-linked polyethylene) which provides a unique combination of stability, flexibility, and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion, and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), which minimizes smoke and toxic fumes in case of fire, therefore, it is suitable for use in fixed installations, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipment in schools, hospitals, hotels, shopping centers, subways, etc., and in applications where mechanical protection is required or mechanical damages are expected to occur. Available in various shapes and sizes in the highest quality and best prices to suit different applications and needs.

  • Conductor: Stranded Copper
  • Insulation Material: XLPE (Cross-Linked Polyethylene)
  • Armoring: SWA (Steel Wire Armor)
  • Outer Sheath: LSHF (Low Smoke Halogen Free)
  • Voltage: 0.6/1kV
  • Number of Cores: 4 Core
  •  Conductor Size (Cross-Sectional Area): 400 mm2
  • Number of Wires: 61
  • Nominal Insulation Thickness: 2.0 mm
  • Nominal Steel Wire Diameter: 3.15 mm
  • Nominal Sheath Thickness: 3.5 mm
  • Approx Overall Diameter: 82.6 mm
  • Weight: 21195 kg/km
  • Standard Length: 250 meters
  • Phase Core Colors: (Red, Yellow, Blue, Black)
  • Standard: IEC 60502-1
