5 Core 4×400+185mm 0.6/1kV Stranded Electrical Cable, CU/XLPE/SWA/ZHLS, 250 meter | BAHRA
(613 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

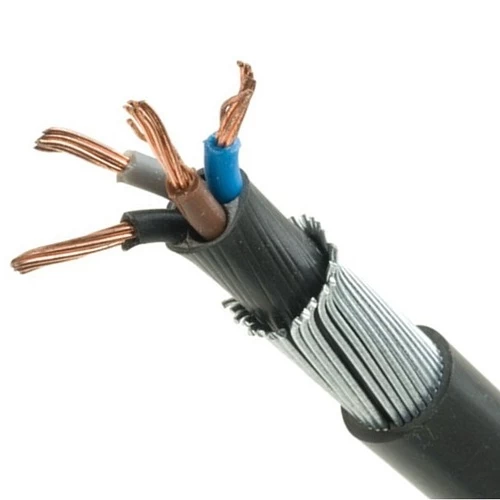

Stranded copper armoured cable (CU/XLPE/SWA/LSHF), 4 phase + neutral line, 4×400+185mm2 size, The cable can withstand exposure to various chemicals without affecting its performance, and its light weight makes it easy to install and transport, from Bahra.
Product description
Stranded copper armoured cable (CU/XLPE/SWA/LSHF), 4 phase + neutral line, Produced by BAHRA Cables Company. Armored with single layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is suitable for use in fixed installations, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipment in schools, hospitals, hotels, shopping centers, subways, etc., and in applications where mechanical protection is required or mechanical damages are expected to occur. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor: Stranded Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Armoring: SWA (Steel Wire Armor)
- Outer Sheath: LSHF (Low Smoke Halogen Free)
- Voltage: 0.6/1kV
- Number of Cores: 4 Core + Neutral Line
- Conductor Size (Cross-Sectional Area): ( 4cx400 mm2 ) + 185mm2
- Number of Phase Wires: 61
- Number of Neutral Wires: 37
- Nominal Insulation Thickness of Phase: 2.0 mm
- Nominal Insulation Thickness of Neutral: 1.6 mm
- Nominal Sheath Thickness: 3.3 mm
- Nominal Steel Wire Diameter: 3.15 mm
- Approx Overall Diameter: 81.1 mm
- Weight: 21300 kg/km
- Length : 250 meters
- Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yelllow)
- Standard: IEC 60502-1
