2x35mm 600/1000V Cable, Stranded Copper Conductor XLPE Insulated, SWA Armored, LSHF Sheath | Alfanar
(945 Product Views)

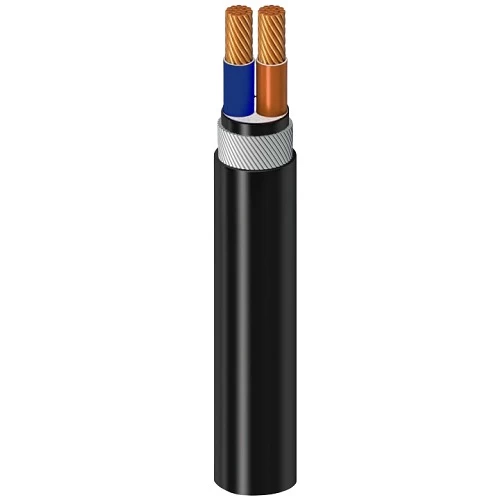

Two core stranded copper armoured cable (CU/XLPE/SWA/LSHF), 35 mm2 size, The cable is characterized by not containing chloride, making it environmentally friendly, Produced by Al Fanar Company.
Product description
Two core stranded copper armoured cable (CU/XLPE/SWA/LSHF), Produced by Al Fanar Company according to BS 6724 standard. Armored with single layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is suitable for use in fixed installations, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipment in schools, hospitals, hotels, shopping centers, subways, etc., and in applications where mechanical protection is required or mechanical damages are expected to occur. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Bedding: LSHF
- Armouring: Single Layer of Galvanized Steel Wires (SWA)
- Outer Jacket: LSHF (Low Smoke Halogen Free)
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area):35 mm2
- Max DC Conductor Resistance at 20°C: 0.5240 ohm/km
- Max AC Conductor Resistance at 90°C: 0.6688 ohm/km
- Current Rating Laid in Ground: 180 Ampere
- Current Rating Laid in Ducts: 138 Ampere
- Current Rating Laid in Free Air: 188 Ampere
- Approx Overall Diameter: 26.5 mm
- Weight: 1770 kg/km
- Phase Core Colors: (Brown, Blue)
- Standard: BS 6724
