2x240mm2 600/1000volts Cable, Stranded Copper Conductor XLPE Insulated, SWA Armored, LSHF Sheath | Alfanar
(1208 Product Views)

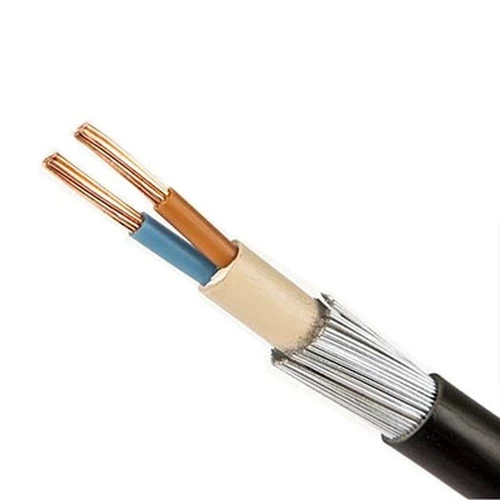

Two core stranded copper armoured cable (CU/XLPE/SWA/LSHF), 240 mm2 size, Available in different shapes and sizes with the highest quality and best prices, Produced by Al Fanar Company.
Product description
Two core stranded copper armoured cable (CU/XLPE/SWA/LSHF), Produced by Al Fanar Company according to BS 6724 standard. Armored with single layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is suitable for use in fixed installations, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipment in schools, hospitals, hotels, shopping centers, subways, etc., and in applications where mechanical protection is required or mechanical damages are expected to occur. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Bedding: LSHF
- Armouring: Single Layer of Galvanized Steel Wires (SWA)
- Outer Jacket: LSHF (Low Smoke Halogen Free)
- Voltage: 600/1000 volts
- Conductor Shape: Sectoral Stranded (sm)
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 240 mm2
- Max DC Conductor Resistance at 20°C: 0.0754 ohm/km
- Max AC Conductor Resistance at 90°C: 0.1012 ohm/km
- Current Rating Laid in Ground: 485 Ampere
- Current Rating Laid in Ducts: 403 Ampere
- Current Rating Laid in Free Air: 569 Ampere
- Approx Overall Diameter: 49.8 mm
- Weight: 7385 kg/km
- Phase Core Colors: (Brown, Blue)
- Standard: BS 6724
