10mm 0.6/1 kV 4 Core Copper Cable, XLPE Insulation, LSHF Sheathed, Steel Wire Armored | Alfanar
(1045 Product Views)

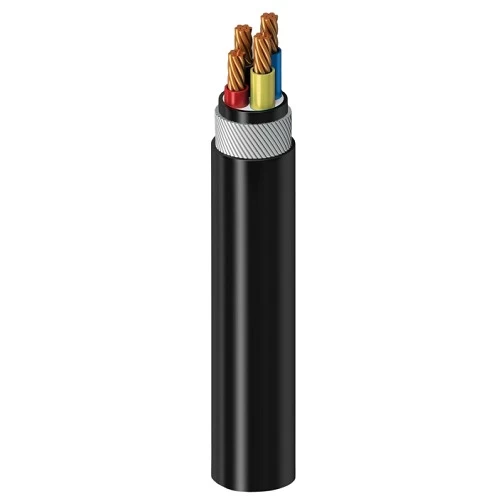

10 mm 600/1000V four core cable, stranded copper armoured conductor, XLPE insulated, LSHF sheathed, according to IEC 60502-1 (International Electrotechnical Commission) standard. Insulated with XLPE (cross-linked polyethylene) making them suitable for a diverse range of applications, phase core color is red, yellow, blue and black, produced by Alfanar Company.
Product description
Stranded armoured cable (CU/XLPE/SWA/LSHF), produced by Alfanar Company according to IEC 60502-1 (International Electrotechnical Commission) standard. Armored with single layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is suitable for use in fixed installations, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipment in schools, hospitals, hotels, shopping centers, subways, etc., and in applications where mechanical protection is required or mechanical damages are expected to occur. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded Circular (rm)
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Bedding: LSHF
- Armouring: Single Layer of Galvanized Steel Wires (SWA)
- Outer Jacket: LSHF (Low Smoke Halogen Free)
- Voltage: 600/1000 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 10 mm2
- Max DC Conductor Resistance at 20°C: 1.8300 ohm/km
- Max AC Conductor Resistance at 90°C: 2.3336 ohm/km
- Current Rating Laid in Ground: 75 Ampere
- Current Rating Laid in Ducts: 56 Ampere
- Current Rating Laid in Free Air: 73 Ampere
- Approx Overall Diameter: 21.4 mm
- Weight: 1020 kg/km
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
