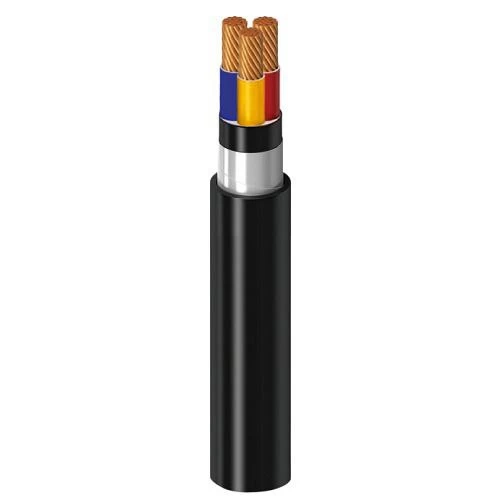

6 mm2 600/1000V 3 Phase Cable, Stranded Copper XLPE insulated, STA armed, LSHF sheathed, phase core colors (red, yellow, blue), it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), which makes it for use in fixed installations, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipment, from Alfanar Cables Company.
Product description
Three core stranded copper armoured cable (CU/XLPE/STA/LSHF), Produced by Alfanar Cables Company. Armored with double layers of galvanized steel tapes (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is suitable for use in fixed installations, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipment in schools, hospitals, hotels, shopping centers, subways, etc., and in applications where mechanical protection is required or mechanical damages are expected to occur. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded Circular (rm)
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Bedding: LSHF
- Armouring: Double Layers of Galvanized Steel Tapes (STA)
- Outer Jacket: LSHF (Low Smoke Halogen Free)
- Voltage: 600/1000 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 6 mm2
- Max DC Conductor Resistance at 20°C: 3.0800 ohm/km
- Max AC Conductor Resistance at 90°C: 3.9274 ohm/km
- Current Rating Laid in Ground: 55 Ampere
- Current Rating Laid in Ducts: 40 Ampere
- Current Rating Laid in Free Air: 52 Ampere
- Approx Overall Diameter: 16.1 mm
- Weight: 495 kg/km
- Phase Core Colors: (Red, Yellow, Blue)
- Standard: IEC 60502-1
