500mm 0.6/1kV Single Core Stranded Electric Cable, CU/XLPE/AWA/LS0H, Blue Color, 500 m | BAHRA

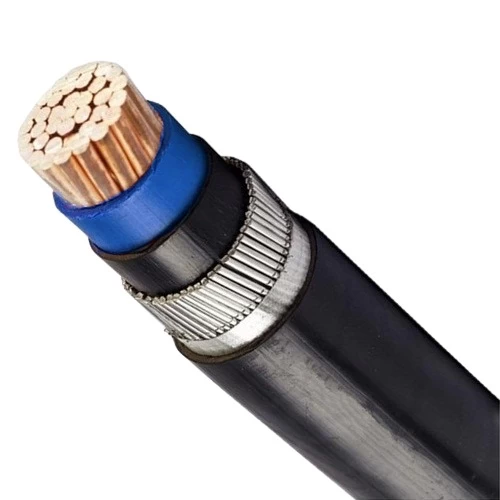

Single core stranded copper armored power cable (CU/XLPE/AWA/LSHF), Produced by BAHRA Cables Company. Armored with layer of aluminum wires (AWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of low smoke halogen-free compound (LSHF), non-toxic and environmentally friendly as it does not contain halogens and does not produce dense smoke or harmful fumes in case of fire. Making it ideal for use in public buildings, industrial areas, and infrastructure projects. and densely populated areas where fire and smoke emissions pose a potential threat to equipment and life. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

• Conductor: Stranded Copper Wire
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armoring: AWA (Aluminum Wire Armor)
• Outer Sheath: LSHF (Low Smoke Halogen Free)
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 500 mm2
• Number of wires: 61
• Nominal Insulation Thickness: 2.2 mm
• Nominal Aluminum Wire Diameter: 2.0 mm
• Nominal Sheath Thickness: 2.2 mm
• Approx Overall Diameter: 42.6 mm
• Weight: 5660 kg/km
• Standard Packaging Cable: 500 meters
• Phase Core Color: Blue
• Standard: BS 6724
