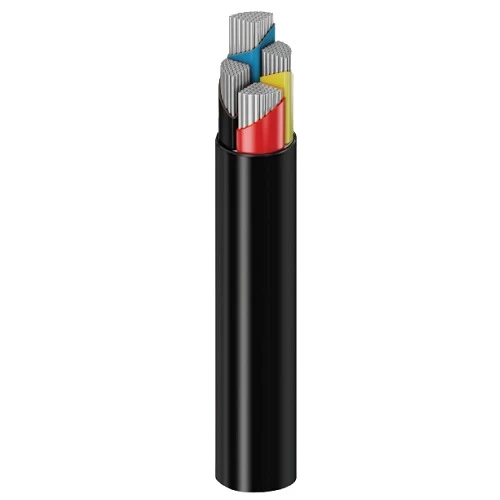

35mm2 0.6/1kV 4 Phase Aluminum Cable, XLPE Insulated, LSZH Sheath | Alfanar
(1086 Product Views)
Four phase aluminum cable, size 35mm2. XLPE insulation provides high strength and flexibility. The LSZH sheath reduces smoke and toxic fumes in case of fire. Produced by Alfanar.
Product description
Aluminum electrical cable 4 core, produced by Alfanar insulated and sheathed. The insulation offers flexibility and durability, making it suitable for a wide range of applications. It withstands high temperatures up to 90°C for extended periods without damage. The cable also endures harsh environmental conditions, such as moisture, corrosion, and chemicals. It is chloride-free, making it environmentally friendly. The outer sheath reduces smoke and toxic fumes in case of fire, making it suitable for use in fixed installations and sensitive areas like schools, hospitals, hotels, and shopping centers. Available in various shapes and sizes, with high quality and competitive prices to suit multiple needs.
- Conductor Type: Aluminum
- Conductor Shape: Stranded Circular (sm)
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Jacket: LSHF (Low Smoke Halogen Free)
- Voltage: 600/1000 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 35 mm²
- Max DC Conductor Resistance at 20°C: 0.8680 ohm/km
- Max AC Conductor Resistance at 90°C: 1.1130 ohm/km
- Current Rating Laid in Ground: 176 Ampere
- Current Rating Laid in Ducts: 128 Ampere
- Current Rating Laid in Free Air: 159 Ampere
- Approx Overall Diameter: 25.0 mm
- Weight: 745 kg/km
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
