3x16 mm 0.6/1kV Stranded Aluminum Cable, XLPE Insulated, LSHF Sheathed | Riyadh Cables
(660 Product Views)

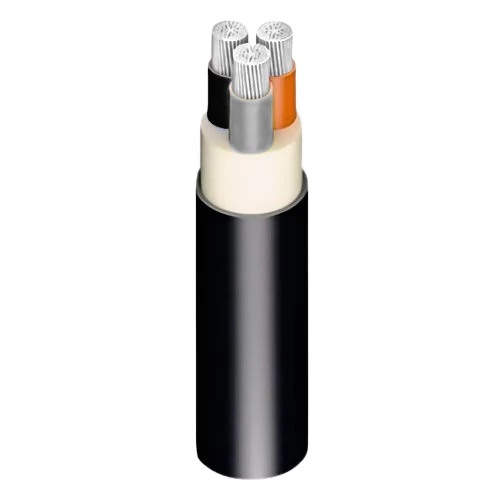

Aluminium power cable (AL/XLPE/LSHF), 3 core stranded 3x16 mm2, low voltage 600/1000V, insulation color (Brown, black, Grey), produced by Riyadh Cables Company, which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications.
Product description
Aluminium power cable (AL/XLPE/LSHF), insulation color (Brown, black, grey), Produced by Riyadh Cables Company, Insulated with XLPE (cross-linked polyethylene), which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications, It can withstand high temperatures up to 90°C for extended periods without compromising performance, The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use, chloride-free, making it environmentally friendly, Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, enhancing safety in sensitive environments like hospitals, data centers, and public buildings, Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Aluminum
- Insulation Material:XLPE (Cross-Linked Polyethylene)
- Voltage: 600/1000 volts
- Conductor Shape:Stranded (rm)
- Number of Cores:3
- Conductor Size (Cross-Sectional Area): 16 mm2
- Number of wires: 7
- Approx Conductor Diameter: 5.0 mm
- Nominal Insulation Thickness:0.7 mm
- Nominal Sheath Thickness:1.8 mm
- Approx Overall Diameter: 20 mm
- Weight: 500 kg/km
- Length:1000 meters
- Phase Core Color:(Brown, black, grey)
- Standard: IEC 60502-1
