3 Phase 50 mm2 Stranded Aluminum Cable 0.6/1kV, XLPE Insulated, LSHF Sheathed | Riyadh Cables
(1071 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

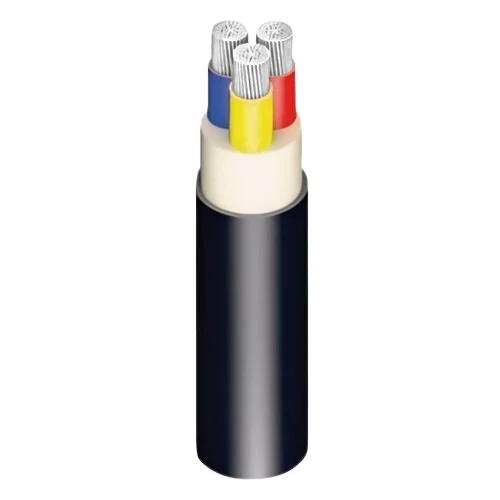

Aluminium electrical cable (AL/XLPE/LSHF). 3 core stranded, 3×50 mm2, low voltage 600/1000V, insulation color (red, yellow, blue), according to IEC 60502-1 (International Electrotechnical Commission) standard, Insulated with XLPE (cross-linked polyethylene) Chloride-free, making it environmentally friendly, produced by Riyadh Cables Company.
Product description
Aluminium power cable (AL/XLPE/LSHF), Produced by Riyadh Cables Company, Insulated with XLPE (cross-linked polyethylene), which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications, It can withstand high temperatures up to 90°C for extended periods without compromising performance, The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use, chloride-free, making it environmentally friendly, Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, enhancing safety in sensitive environments like hospitals, data centers, and public buildings, Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Aluminum
- Insulation Material:XLPE (Cross-Linked Polyethylene)
- Voltage: 600/1000 volts
- Conductor Shape:Stranded (rm)
- Number of Cores:3
- Conductor Size (Cross-Sectional Area): 50 mm2
- Number of wires:19
- Approx Conductor Diameter:8.8 mm
- Nominal Insulation Thickness:1.0 mm
- Nominal Sheath Thickness:1.8 mm
- Approx Overall Diameter:30 mm
- Weight: 1785 kg/km
- Length:500 meters
- Phase Core Color:(Red, Yellow, Blue)
- Standard: IEC 60502-1
