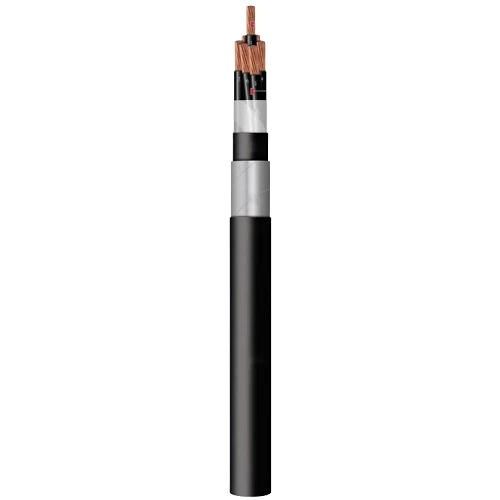

Stranded Copper Control Cable 4mm 24 Core 0.6/1kV, STA Armored, XLPE Insulation | BAHRA

Stranded copper armored control cable, (CU/XLPE/STA/PVC), Manufactured by BAHRA Cables Company. Used for transmitting signals and information between devices and equipment in various control and operation systems in many fields, including communication systems, transportation systems, and industrial control systems. Armored with galvanized double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor: Stranded annealed plain copper conductor class 2 according to IEC 60228
• Insulation Material: XLPE / 90°C (Cross-Linked Polyethylene)
• Armoring: Galvanized Double Steel Tape (STA)
• Outer Sheath: PVC (Polyvinyl Chloride) / ST2 according to IEC 60502-1
• Voltage: 0.6/1kV
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of Cores: 24
• Approx Overall Diameter: 29.8 mm
• Weight: 1580 kg/km
• Standard Length: 500 meter
• Color: Black
• Applicable Standards: IEC 60228 & BS EN 60228 / IEC 60502-1 & IEC 60332-1
