2.5 mm 40 Core Shielded Control Cable, XLPE Insulated Stranded Copper Conductor, 600/1000 volts | Alfanar

2.5 mm 40 Core Shielded Control Cable, XLPE Insulated Stranded Copper Conductor, 600/1000 volts | Alfanar

(576 Product Views)

YouMats

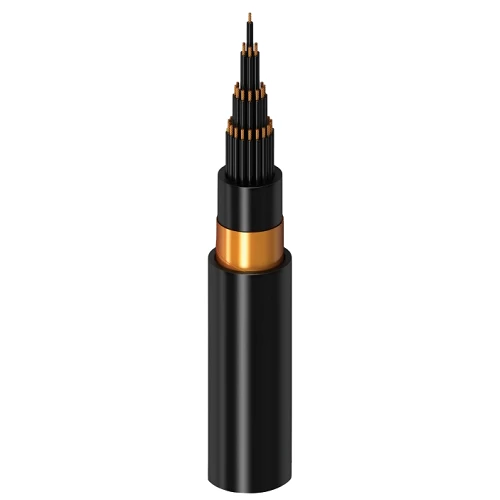

Stranded copper shielded control cable, (CU/XLPE/CTS/PVC), 40 core, 2.5 mm2 cross-section, low voltage 600/1000 volts, shielded with copper tape (CTS) to create a shield that blocks unwanted electromagnetic waves, preserving signal quality and minimizing the risk of data loss or corruption, manufactured by Alfanar company.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Stranded copper shielded control cable, (CU/XLPE/CTS/PVC), Manufactured by Al Fanar Company. Used for transmitting signals and information between devices and equipment in various control and operation systems in many fields, including communication systems, transportation systems, and industrial control systems. Shielded with Copper Tape (CTS) To create a shield that blocks unwanted electromagnetic waves, preserving signal quality and minimizing the risk of data loss or corruption. Insulated with XLPE (cross-linked polyethylene), where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

  • Conductor Type : Copper
  • Conductor Shape : Round Stranded (rm)
  • Insulation Material : XLPE (Cross-Linked Polyethylene)
  • Bedding : PVC
  • Shielding : Single Copper Tape (CTS)
  • Outer Jacket : PVC (Polyvinyl Chloride)
  • Voltage : 600/1000 volts
  • Conductor Size (Cross-Sectional Area) : 2.5 mm2
  • Number of Cores : 40
  • Max DC Conductor Resistance at 20°C : 7.4100 ohm/km
  • Max AC Conductor Resistance at 90°C : 9.4485 ohm/km
  • Current Rating Laid in Ground : 11 Ampere
  • Current Rating Laid in Ducts : 9 Ampere
  • Current Rating Laid in Free Air : 12 Ampere
  • Approx Overall Diameter : 32.1 mm
  • Weight : 1650 kg/km
  • Core Color : Black
  • Standard : IEC 60502-1
