14 AWG THHN/THWN Stranded Copper Building Wire, 600V, PVC Insulated, Nylon Jacketed, Black Color | Nohascom Factory
(697 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

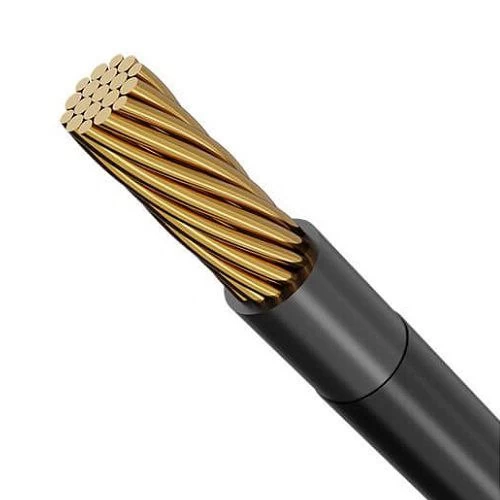

THHN/THWN stranded copper electrical american wire, size 14 AWG, 600 volts, insulated with polyvinyl chloride (PVC), insulation color black, manufactured by Nohascom Factory.
Product description
THHN/THWN stranded copper electrical american wire, manufactured by Nohascom Factory. Insulated with polyvinyl chloride (PVC) and jacketed with nylon for added protection against abrasion and scratches during conduit pulling. It also offers good resistance to oil, gasoline, and chemicals. It is also characterized by its high resistance to heat and water. THHN/THWN building wires are used in general applications for providing power and lighting in residential and commercial buildings at temperatures not exceeding 105°C. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Stranded Copper
- Insulation material: (PVC) Suitable for dry locations 105°C and wet locations 75°C
- Jacket: Nylon
- Voltage: 600 volts
- Size (Cross-sectional area): 14 AWG (2.08 mm2)
- Number of Wires x Dia: 19 × 0.390 mm
- Max DC Conductor Resistance at 20°C: 8.62 ohm/km
- Nominal Insulation Thickness: 0.38 mm
- Normal Jacket Thickness: 0.1 mm
- Overall Diameter: 3.1 mm
- Weight: 24 kg/km
- Insulation Color: Black
- Length: 500 feet (152.4 meters)
