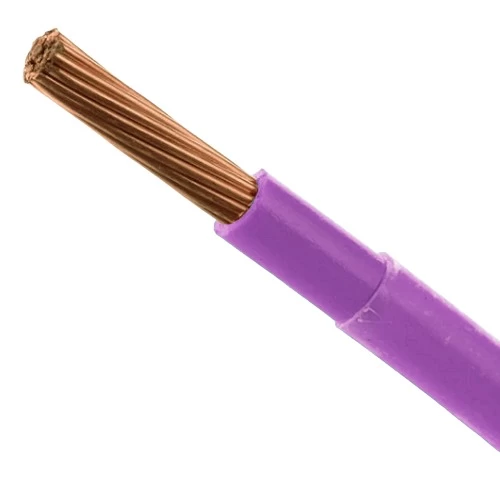

12 AWG THHN/THWN Stranded Copper American Wire, 600V, insulated with PVC and jacketed with nylon for added protection against scratches and corrosion. It is used in various electrical applications for power and lighting connections and offers high resistance to oils and chemicals. Purple color. Produced by Asharqiyah Cables Company.
Product description
THHN/THWN electrical American building wire, stranded copper (CU/PVC/NYLON), manufactured by Asharqiyah Cables Company. Insulated with polyvinyl chloride (PVC) and jacketed with nylon for added protection against abrasion and scratches during conduit pulling. It also offers good resistance to oil, gasoline, and chemicals. It is characterized by its high resistance to heat and water, making it appropriate for use in dry locations at temperatures not to exceed 90˚C or wet locations up to 75°C. THHN/THWN building wires are used in general applications for providing power and lighting in residential, commercial, and industrial buildings. Available in a variety of sizes and colors with the highest quality and best prices.
- Wire Type: THHN/THWN Building wire (suitable for dry locations 90°C and wet locations 75°C)
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride) 105°C
- Jacket: Nylon
- Voltage: 600 volts
- Size (Cross-sectional area): 12 AWG (3.31 mm²)
- Number of Wires: 19
- Nominal Insulation Thickness: 0.38 mm
- Nylon Jacket Thickness: 0.11 mm
- Overall Diameter: 3.33 mm
- Weight: 36 kg/km
- Current Carrying Capacity (THHN): 25 Amperes
- Current Carrying Capacity (THWN): 30 Amperes
- Standard Packing Length: 500 feet (152.4 meters) In Plastic Spools
- Insulation Color: Purple
- Standards: UL 83, UL 1581
