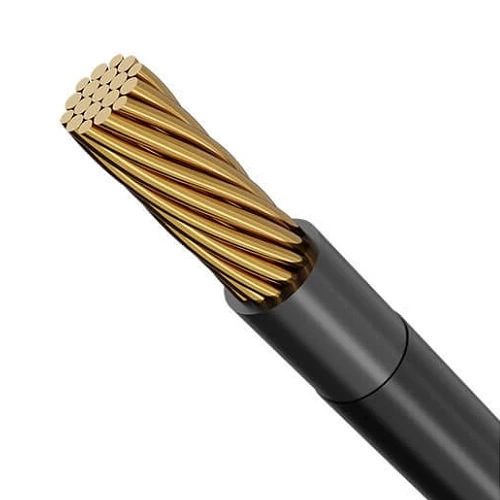

10 AWG THHN/THWN Stranded Copper American Wire, 600 Voltage Rating, PVC Insulated, Nylon Jacket, Yellow Color | Nohascom Factory

10 AWG THHN/THWN Stranded Copper American Wire, 600 Voltage Rating, PVC Insulated, Nylon Jacket, Yellow Color | Nohascom Factory

(669 Product Views)

YouMats

10 AWG THHN/THWN Stranded Copper American Wire, 600V, insulated with PVC and jacketed with nylon to protect the insulation from abrasion and oils, providing excellent heat resistance, making it ideal for general applications requiring power and lighting connections. Yellow color. Produced by Nohascom Factory.

in stock
 Call Now

Product description

American THHN/THWN stranded copper electrical wire, manufactured by Nohascom Factory. Insulated with polyvinyl chloride (PVC) and jacketed with nylon for added protection against abrasion and scratches during conduit pulling. It also offers good resistance to oil, gasoline, and chemicals, as well as high resistance to heat and water. THHN/THWN building wires are used in general applications for providing power and lighting in residential and commercial buildings at temperatures not exceeding 105°C. Available in a variety of sizes and colors with the highest quality and best prices to suit different applications and needs.


  • Conductor: Stranded Copper
  • Insulation Material: (PVC) Suitable for dry locations 105°C and wet locations 75°C
  • Jacket: Nylon
  • Voltage: 600 volts
  • Size (Cross-sectional area): 10 AWG (5.26 mm²)
  • Number of Wires x Dia: 19 × 0.61 mm
  • Max DC Conductor Resistance at 20°C: 3.41 ohm/km
  • Nominal Insulation Thickness: 0.51 mm
  • Normal Jacket Thickness: 0.1 mm
  • Overall Diameter: 4.5 mm
  • Weight: 59 kg/km
  • Insulation Color: Yellow
  • Length: 500 feet (152.4 meters)
