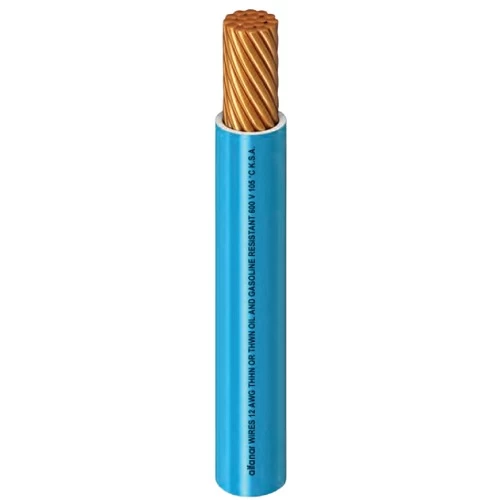

10 AWG Stranded THWN Copper Electric Wire, 600 Rated Voltage, PVC Insulated, Nylon Jacketed, Blue Color, Coil Length 300 feet | Alfanar

THWN electrical wire, manufactured by Alfanar Company. Insulated with polyvinyl chloride (PVC) and jacketed with nylon for added protection against abrasion and scratches during conduit pulling. It also offers good resistance to oil, gasoline, and chemicals. THWN building wires are used in wet locations for general applications such as power and lighting in residential and commercial buildings. Common applications include wiring appliances, control panels, and motors.

• Wire Type: (THWN 75°C) for wet locations, building wire
• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Jacket: Polyamide Nylon
• Voltage: 600 volts
• Conductor Size (Cross-Sectional Area): 5.26 mm (10 AWG)
• Number of Wires: 19 × 0.59 mm
• Max DC Conductor Resistance at 20°C: 3.409 ohm/km
• Nominal Insulation Thickness: 0.51 mm
• Nominal Jacket Thickness: 0.10 mm
• Approx Overall Diameter: 4.2 mm
• Weight: 59 kg/km
• Insulation Color: Blue
• Standard Length: 300 feet on coil (Other lengths available on request)
• Standard: UL 83
