Stranded Wire Coil 6mm2 450/750V, Copper Conductor 1.04mm Diameter, PVC Sheathed | Alfanar

Stranded Wire Coil 6mm2 450/750V, Copper Conductor 1.04mm Diameter, PVC Sheathed | Alfanar

(499 Product Views)

YouMats

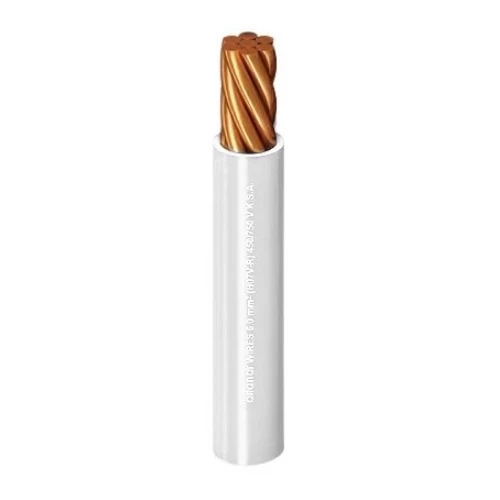

Stranded Wire Coil 6mm2 450/750V, Copper Conductor 1.04mm Diameter, PVC Sheathed. The insulation provides protection against electrical leakage, shocks, and corrosion, and prevents UV ray damage. Ideal for internal wiring and power circuits. White color. Produced by Alfanar.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

stranded copper electrical wire (CU/PVC) manufactured by Alfanar, in accordance with the latest British Standards (BS) and International Electrotechnical Commission (IEC) standards. Insulated with polyvinyl chloride (PVC), they are distinguished by their economical cost, reliable performance, and durability. The insulation forms an excellent layer around the conductor to prevent electric current leakage and provides protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal connections of appliances and equipment. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.

  • Conductor Type: Copper
  • Conductor Shape: Stranded
  • Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 6 mm²
  • Number of Wires: 7
  • Conductor Diameter: 1.04 mm
  • Max DC Conductor Resistance at 20°C: 3.08 ohm/km
  • Nominal Insulation Thickness: 0.8 mm
  • Approx Overall Diameter: 4.7 mm
  • Weight: 72 kg/km
  • Color: White
  • Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
