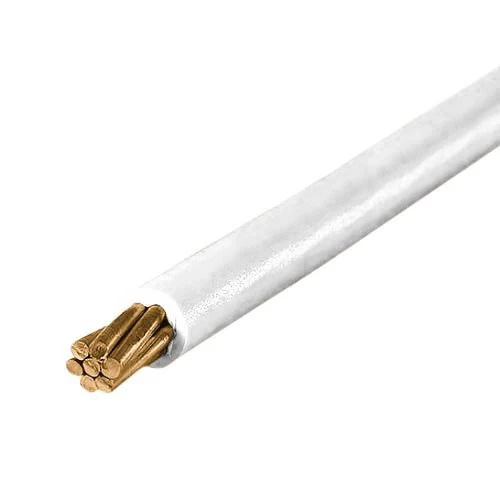

Stranded Electric Wire 6mm 450/750 Voltage Rating, Copper Conductor, PVC Insulation, White Color | Riyadh Cables

Stranded copper electrical wire (CU/PVC), manufactured by Riyadh Cables Company according to international standards to ensure quality and safety. Insulated with polyvinyl chloride (PVC),They are distinguished by their economical cost, reliable performance, and durability, As it is forms excellent insulation around the conductor to prevent leakage of electric current, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the wire and it is also highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal wiring of equipment rated voltage up to 1000 V AC and up to 750 V DC to earth. Available in various shapes, colors and sizes in highest quality and best prices to suit different applications and needs.

• Conductor: Copper
• Conductor Shape: Stranded
• Wire Type: (H07V-R)
• Insulation Material: polyvinyl chloride (PVC)
• Voltage: 450/750 volts
• Conductor Size (Cross-Sectional Area): 6 mm2
• Number of Wires in Conductor: 7
• Conductor Diameter: 3.12 mm
• Nominal Insulation Thickness: 0.8 mm
• Approx Overall Diameter: 5.2 mm
• Weight: 71 kg/km
• Maximum DC Resistance at 20°C: 3.08 ohm/km
• Length: 100 m coil (±5%)
• Color: White
• Standards: SSA 1320, IEC 60227 & BS 6004
